New Arrival! 5 Inch Aerial Photography FPV Monitor ,No Blue Screen
   Published:2013-08-28 07:34:03   Text Size:  16px  14px  12px

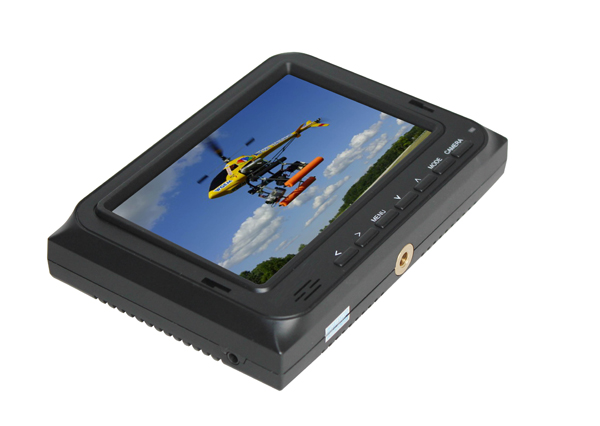

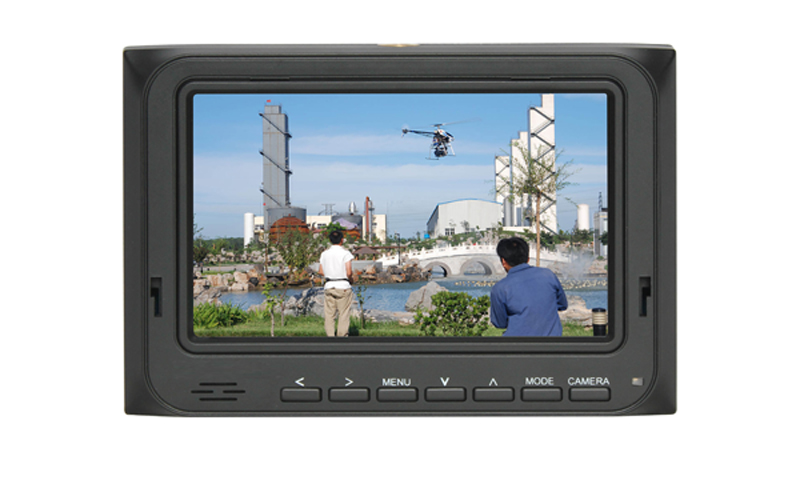

5" Professional FPV Monitor for Aerial Photograph

No Blue Screen

Advanced  Features:

  1. NO Blue Screen
  2. Default Display View
  3. 350cd/mhigh brightness
  4. Supports Composite Video RCA Input
  5. Display Resolution up to 1920x1440 Pixels
  6. 16:9 or 4:3 Adjustable Display Ratio

Specifications :

Description 5" FPV monitor for Aerial Photography
Model Number  FPV-500A
Screen Size  5 inch
Resolution  800x480,support up to 1920x1440
Backlight LED
Aspect Ratio 16:9
Contrast Ratio 500:1
Brightness 350cd/m2
Support Video Format NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.
Viewing Angle 70°/70°(L/R) , 50°/70°(U/D)

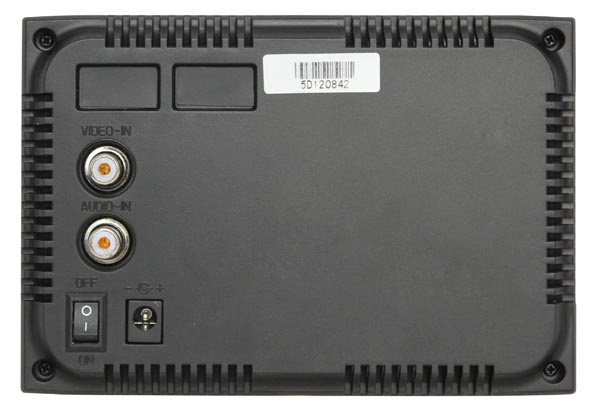

Input Signal  Video,Audio,Side Earphone Jack
Output Signal  Built in speaker
Input Voltage  DC 6-24V
PowerConsumption ≦7W
WorkingTemperature -20℃~60℃
Storage Temperature -30℃~70℃

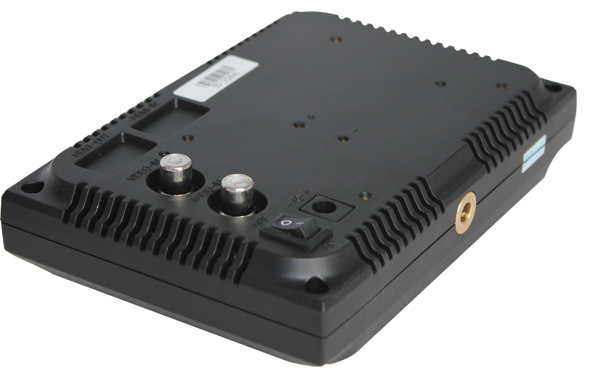

Install Way  "1/4"-20 Thread
Unit Size  146 × 100W ×46H(mm)
Unit Weight  350g

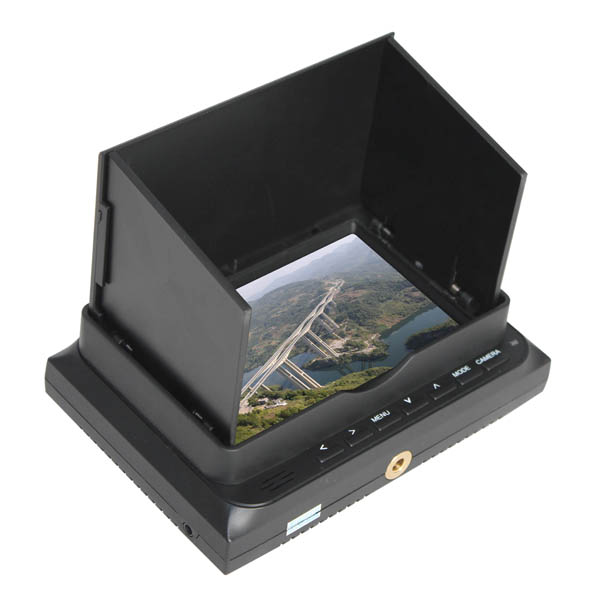

Standard Accessories   Sun Shade x1 , Instrcution Manual x 1
Optional Accessories  Hot Shoe Mount , DC 12V Power Adaptor, SONY F970 Battery Plate ,Canon LP-E6 Battery Plate
Packing Details  10PCS/CTN,  Carton Size : 50x45x28cm  , N.W./G.W.: 14/16KGS
