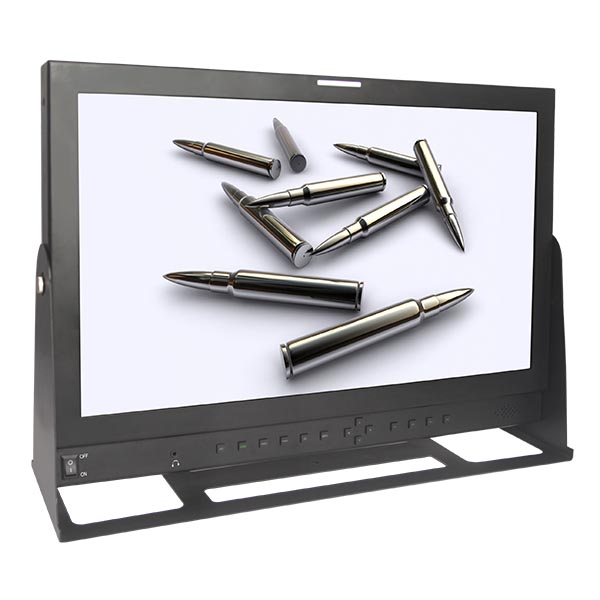

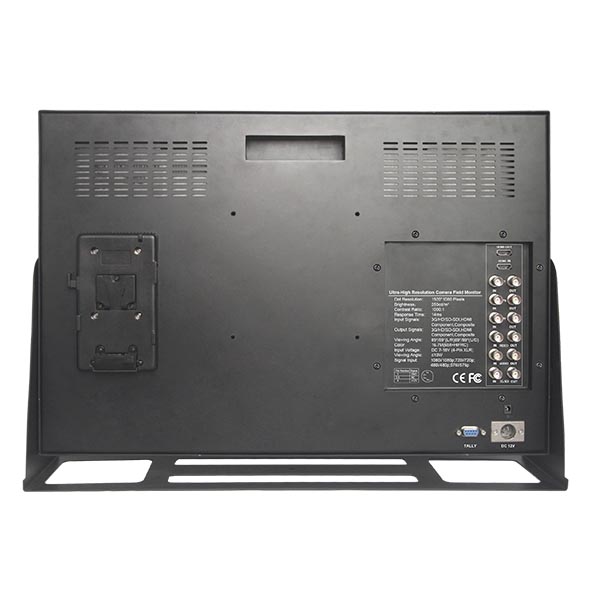

3G-SDI Professional 13.3 Inch Broadcasting HD Monitor
Advanced Features :
- 5D Ⅱ Camera Mode(DSLR Ratio Adjustment)
- H/V Delay
- Image Freeze/ Multiplication(Zoom),Image Flip
- Check Field (Red,Green,Blue,Mono,)

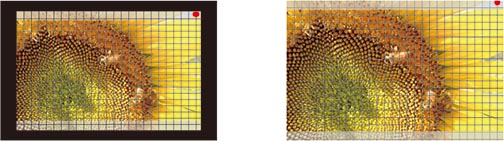

- Underscan/Overscan
- Pixel-to-Pixel Mode
- Tally Indicator(Red/ Green)
- Front Headphone Jack

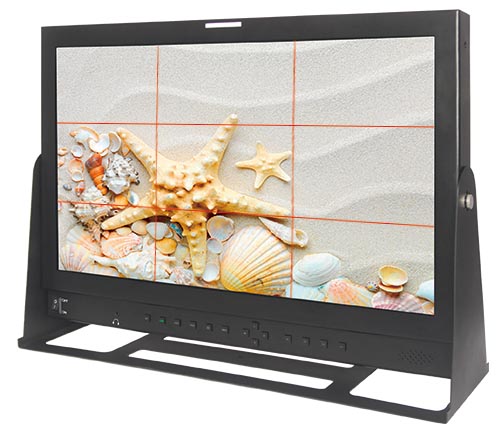

- Center Marker/Screen Marker（80%, 85%, 90%, 93%, 96%）
- Variety of Optional User-Replaceable Battery Adapters available: V-Mount battery plate,Panasonic Anton Bauer battery plate
Specifications :
|
Model Number |
P133-9HSD |
|
Screen Size |
13.3 Inch |
|
Resolution |
1366X768 |
|
Backlight |
LED |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
500:1 |
|
Brightness |
220cd/m2 |
|
Viewing Angle |
45°/45°(L/R) ,20°/45°(U/D) |
|
Input Signals |
3G/HD/SD-SDI,HDMI,Component,Composite |
|
Output Signals |
3G/HD/SD-SDI,HDMI,Component,Composite |
|
Power Consumption |
≦10W |
|
Input Voltage |
DC 7-18V (4-Pin XLR) |
|
Working Temperature |
0℃～50℃ |
|
Storage Temperature |
-20℃～60℃ |
|
Unit Size |
355Lx239Wx30H(mm)
|
|
Unit Weight |
6KG |
|
Accessories |
Sun Shade x1, Mini HDMI cable x1, Hot Shoe x1, SONY F970 Battery Plate x1 |
