10 Touch LCD Camera Field HD Monitor with HDMI ,DVI Input
Classification: 10 Inch Published: 2013-08-15 12:42:08
  • Price : Negotiable
  • Order

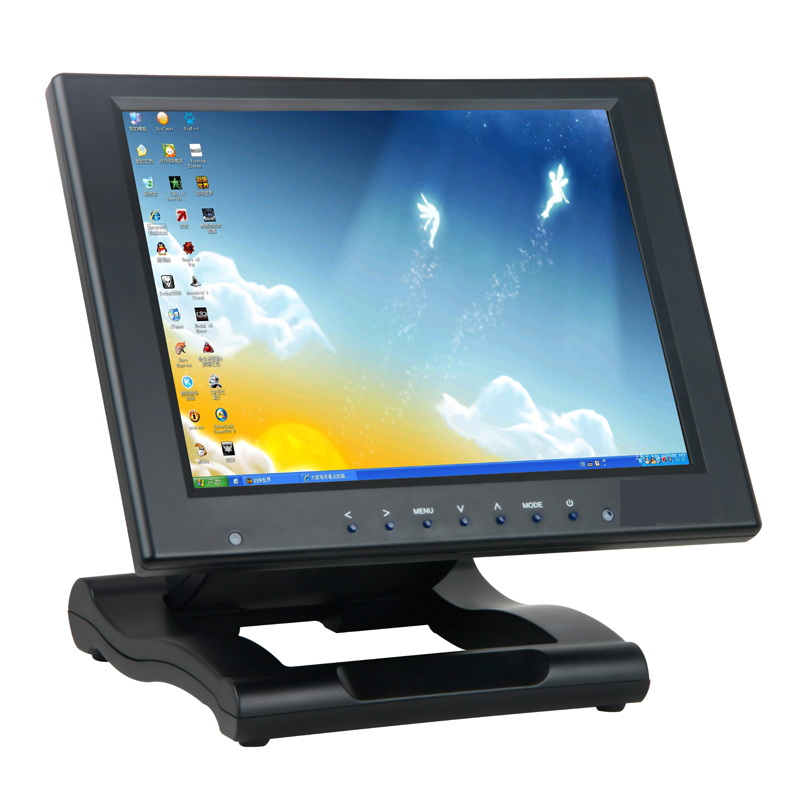

10" Touch LCD Camera Field HD Monitor with

HDMI ,DVI YPbPr  Input


Specifications :


Model Number

100AHT

Screen Size

10 Inch with digital Panel

Resolution

1024x768 (support up to 1920x 1440)

Backlight

LED

Contrast Ratio

600:1

Aspect Ratio

4:3

Brightness

250cd/m2

Viewing Angle

70°/70°(L/R) ,50°/70(°U/D)

Input Voltage

DC12V±15%

Input Signal

VGA,AV1,AV2,Audio,YPbPr,HDMI,DVI

HDMI Format

480i,480p,576i,576p,720p,1080i,1080p(50/60Hz)

Touch screen

4 Wire Resistive Touch ( 5 Wire resistive optional)

Touch Interface

USB for standard (RS 232 for optional)

Mounting Process

Foldable Stand Bracket and VESA 75*75mm installing holes

Power Consumption

6W

WorkingTemperature

-2060

Storage Temperature

-3070

Unit Size

252Lx208Wx74H mm(folding)

252Lx185Wx296H mm(unfolding)

Unit Weight

1152g

OS Support for Touch

MAC,Vista,Linux ,Win CE, MS-DOS, Window XP, Window NT4,

Window 9X/ME

Standard Accessories

AV Cable  x 1,   VGA Cable X1 , USB Cable x 1 ,Bracket x 1



Remote Controller x 1 , AC Adaptor x 1, Instruction Manual x 1



Touch Pen x 1 , Touch Driver Disc x 1 (for touch )

Packing Details

5PCS/CTN



N.W./G.W.: 17/18 KGS



Carton Size: 68x34x32cm
