15 Inch Camera Field HD Monitor with SDI Input
Classification: 15 Inch Published: 2013-08-15 16:18:33
- Price : Negotiable
- Order

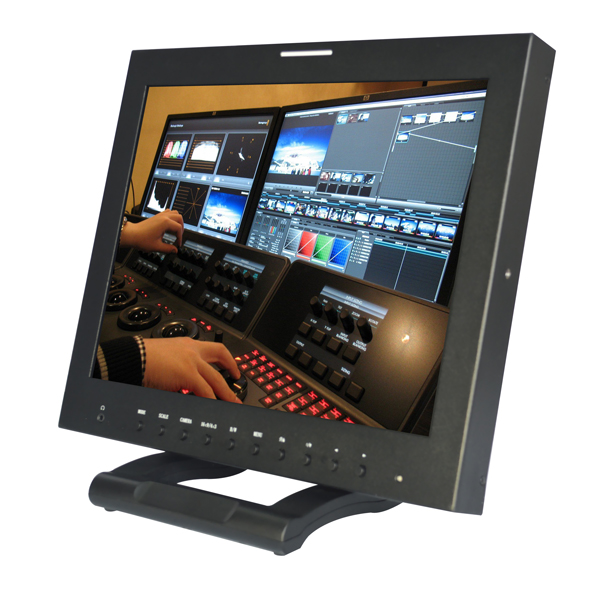

15 Inch Camera Field HD Monitor with SDI Input
Advanced Features :
- Peaking Focus Assist
- Camera 5D II Mode
- Check Field
- Center Marker ,Screen Marker
- Full Screen Display in mode of Monitoring & Recording
- 4:3&16:9 image adjustable
- Front Earphone Jack
-
Image Freeze & Flip
- Picture in Picture(PIP)
- H/V Delay ,Tally Indicator
- False Colors
- Pixel-to-Pixel Mode
-
Underscan/Overscan
Specifications :
| Model Number | P150-3HSD |
| Screen Size | 15 Inch with digital Panel |
| Resolution | 1024x768 |
| Backlight | LED |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 500:1 |
| Brightness | 200cd/m2 |
| HDMI Support Mode |
1080/24p/25p/30p/;50i/50p;60i/60p;720/50p/60p;480i/480p: 576i/576p |
| Inputs |
3G/HD/SD-SDI,HDMI,Component,Composite |
| Outputs |
3G/HD/SD-SDI,Component,Composite,3.5mm Audio,Built-in Speaker |
| Viewing Angle |
40°/40°(L/R) ,10°/30°(U/D) |
| Power Consumption |
≤23W |
| Inpu Voltage |
DC6V-14V±15% |
| Installation Way |
1/4"-20 Thread Socket(All 4 Sides) |
| WoringTemperature |
-20℃～60℃ |
| StorageTemperature |
-30℃～70℃ |
| Unit Size | 345 L x 290 W x 65L (mm) |
| Unit Weight | 3600g |
| StandardAccessories | Sony V Battery Plate x 1, BNC Cable x 1, SDI Cable x 1, Tally Indicator Light x 1 |
|
|
BNC to RCA Connector (3pcs ), Mini HDMI Cable x 1, XLR Power Adaptor x 1 |
| Optional Accessory | Foldable Bracket |
| Packing Details | 2PCS /CTN |
|
|
N.W./G.W.: 14/16KGS |
|
|
Carton Size: 47.7x43.2x33.2 cm |
|
|
|
SDI Support Mode:
| NO. | Resolution | Catalogue |
| 1. |
1080P@60HZ/59.94HZ |
3G-SDI |
| 2. |
1080P@50HZ |
3G-SDI |
| 3. |
1080I@60HZ/59.94HZ |
HD-SDI |
| 4. |
1080I@50HZ |
HD-SDI |
| 5. |
1080P@30HZ/29.97HZ |
HD-SDI |
| 6. |
1080P@25HZ |
HD-SDI |
| 7. |
1080P@24HZ |
HD-SDI |
| 8. |
720P@60HZ/59.94HZ |
HD-SDI |
| 9. |
720P@50HZ |
HD-SDI |
| 10. |
720P@30HZ/29.97HZ |
HD-SDI |
| 11. |
720P@25HZ |
HD-SDI |
| 12. |
720I@24HZ/23.97HZ |
HD-SDI |
| 13. |
480I@60HZ/59.94HZ |
SD-SDI |
| 14. |
576I@50HZ |
SD-SDI |
