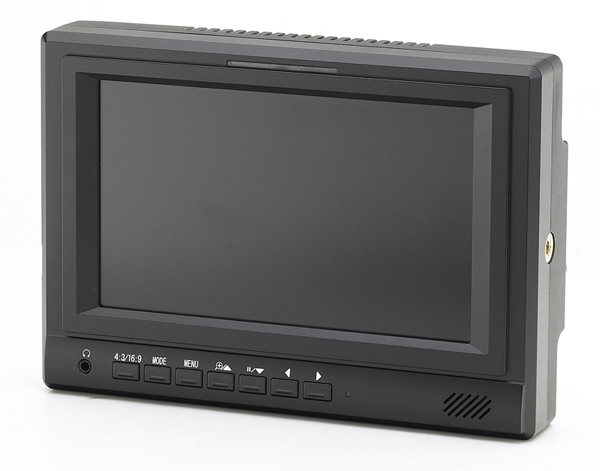

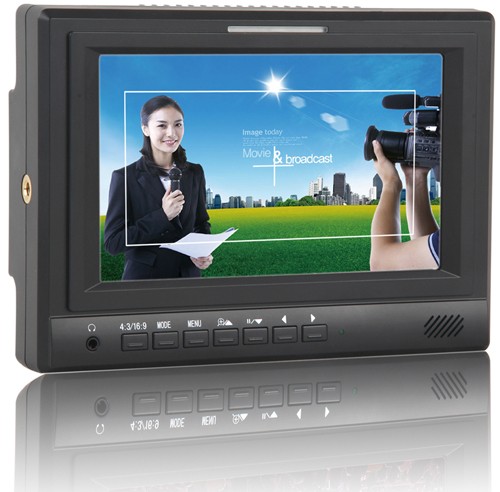

7" 3G-SDI Broadcasting HD Monitor with SDI, HDMI,Component,Composite Input
Advanced Features :
- Peaking Focus Assist
- Camera 5D II Mode
- Check Field
- Center Marker ,Screen Marker
- Full Screen Display in mode of Monitoring & Recording
- 4:3&16:9 image adjustable
- Front Earphone Jack
- Image Freeze & Flip
- Picture in Picture(PIP)
- H/V Delay ,Tally Indicator
- False Colors
- Pixel-to-Pixel Mode
- Underscan/Overscan
Specifications :
|
Model Number |
679-HSD (679-HD without SDI input) |
|
Screen Size |
7 Inch with digital Panel |
|
Resolution |
1024x600 |
|
Backlight |
LED |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
700:1 |
|
Brightness |
250cd/m2 |
|
HDMI Support Mode |
1080/24p/25p/30p/;50i/50p;60i/60p;720/50p/60p;480i/480p: 576i/576p |
|

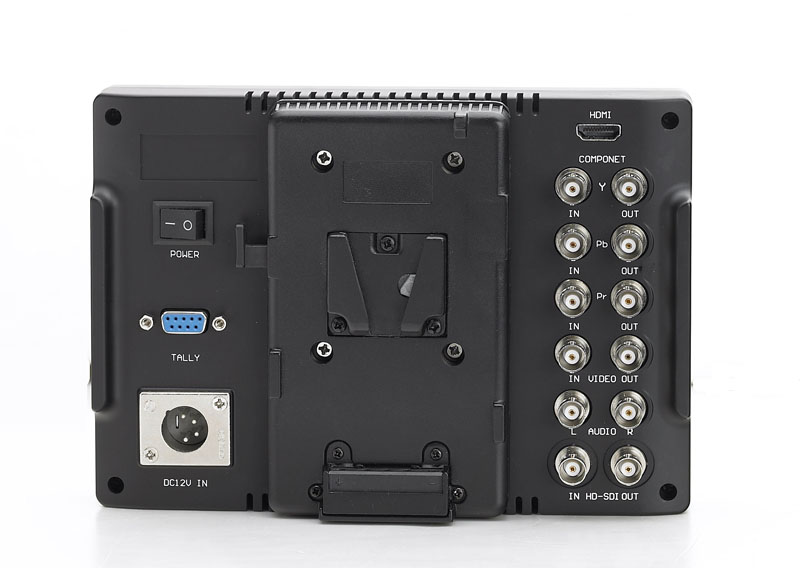

Inputs |
3G/HD/SD-SDI,HDMI,Component,Composite |
|
Outputs |
3G/HD/SD-SDI,Component,Composite,3.5mmAudio,Built-in Speaker |
|
Viewing Angle |
75°/75°(L/R), 70°/75°(U/D) |
|
Power Consumption |
≤10W |
|
Inpu Voltage |
DC6V-14V±15% |
|
Installation Way |
1/4"-20 Thread Socket(All 4 Sides) |
|
WoringTemperature |
-20℃～60℃ |
|
StorageTemperature |
-30℃～70℃ |
|

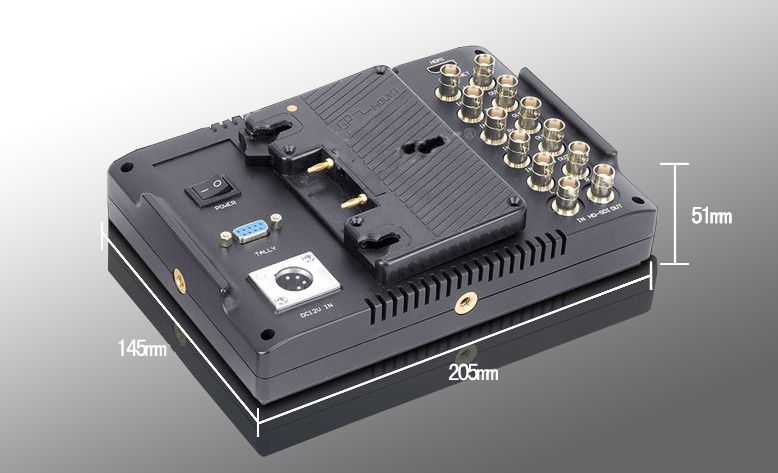

Unit Size |
205 L x 145 W x 51H(mm) |
|
Unit Weight |
750g |
|
StandardAccessories |
Sony F970 BatteryPlate x 1, Tally Indicator Light x 1 ,Shoe Mount x 1, Instruction Manual x 1 |
|
|
Sun Cover x 1 , Mini HDMI Cable x 1, XLR Power Adaptor x 1 |
|
Optional Accessory |
Sony V Battery Plate, Panasonic D28S battery Plate, Panasonic Anton Plate |
|
Packing Details |
5PCS /CTN |
|
|
N.W./G.W.: 12/13KGS |
|
|
Carton Size: 58X32X26.8CM |
|
|
|
SDI Support Mode:
|
NO. |
Resolution |
Catalogue |
|
1. |
1080P@60HZ/59.94HZ |
3G-SDI |
|
2. |
1080P@50HZ |
3G-SDI |
|
3. |
1080I@60HZ/59.94HZ |
HD-SDI |
|
4. |
1080I@50HZ |
HD-SDI |
|
5. |
1080P@30HZ/29.97HZ |
HD-SDI |
|
6. |
1080P@25HZ |
HD-SDI |
|
7. |
1080P@24HZ |
HD-SDI |
|
8. |
720P@60HZ/59.94HZ |
HD-SDI |
|
9. |
720P@50HZ |
HD-SDI |
|
10. |
720P@30HZ/29.97HZ |
HD-SDI |
|
11. |
720P@25HZ |
HD-SDI |
|
12. |
720I@24HZ/23.97HZ |
HD-SDI |
|
13. |
480I@60HZ/59.94HZ |
SD-SDI |
|
14. |
576I@50HZ |
SD-SDI |
|
15. |
PAL |
SD-SDI |
|
16. |
NTSC |
SD-SDI |
