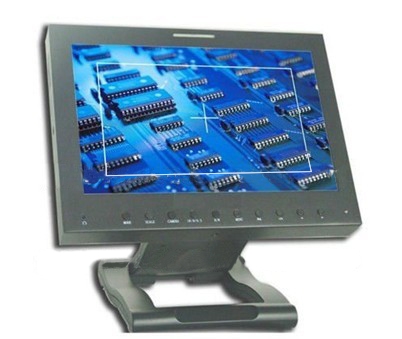

12.1 Inch 16:9 3G-SDI Professional Broadcasting Monitor
Classification: 12.1 Inch Published: 2013-08-16 10:25:20
  • Price : Negotiable
  • Order

12.1 Inch 16:9 3G-SDI Professional Broadcasting Monitor


Advanced Features :



  1. Peaking Focus Assist
  2. Camera 5D II Mode
  3. Check Field
  4. Center Marker ,Screen Marker
  5. Full Screen Display in mode of Monitoring & Recording
  6. 4:3&16:9 image adjustable
  7. Front Earphone Jack
  8. Image Freeze & Flip
  9. Picture in Picture(PIP)
  10. H/V Delay  ,Tally Indicator
  11. False Colors
  12. Pixel-to-Pixel Mode
  13. Underscan/Overscan



Specifications :





Model Number

P121-9HSD (P121-9HD without SDI)

Screen Size

12.1 Inch with digital Panel

Resolution

1280x800

Backlight

LED

Aspect Ratio

16:9

Contrast Ratio

500:1

Brightness

200cd/m2

HDMI Support Mode

1080/24p/25p/30p/;50i/50p;60i/60p;720/50p/60p;480i/480p: 576i/576p

Inputs

3G/HD/SD-SDI,HDMI,Component,Composite

Outputs

3G/HD/SD-SDI,Component,Composite,3.5mmAudio,Built-in Speaker

Viewing Angle

40°/40°(L/R) ,10°/30°(U/D)

Power Consumption

≤23W

Inpu Voltage

DC6V-14V±15%

Installation Way

1/4"-20 Thread Socket(All 4 Sides)

WoringTemperature

-2060

StorageTemperature

-3070

Unit Size

344.8L × 228.2W ×43H(mm)

Unit Weight

2500g

StandardAccessories

Sony VBatteryPlate x 1,  BNC Cable x 3,  Tally Indicator Light x 1



BNC to RCA Connector (3pcs ), Mini HDMI Cable x 1,

XLR Power Adaptor x 1

Optional Accessory

Foldable Bracket

Packing Details

5PCS /CTN



N.W./G.W.: 15/17KGS



Carton Size:  63x35.5x35CM









SDI Support Mode:



NO.

Resolution

Catalogue

1.

1080P@60HZ/59.94HZ

3G-SDI

2.

1080P@50HZ

3G-SDI

3.

1080I@60HZ/59.94HZ

HD-SDI

4.

1080I@50HZ

HD-SDI

5.

1080P@30HZ/29.97HZ

HD-SDI

6.

1080P@25HZ

HD-SDI

7.

 1080P@24HZ

HD-SDI

8.

720P@60HZ/59.94HZ

HD-SDI

9.

720P@50HZ

HD-SDI

10.

720P@30HZ/29.97HZ

HD-SDI

11.

720P@25HZ

HD-SDI

12.

 720I@24HZ/23.97HZ

HD-SDI

13.

480I@60HZ/59.94HZ

SD-SDI

14.

576I@50HZ

SD-SDI
