12.1 3G-SDI Broacast Monitor with SDI,HDMI ,YPbPr Input
Classification: 12.1 Inch Published: 2013-08-16 10:46:28
  • Price : Negotiable
  • Order

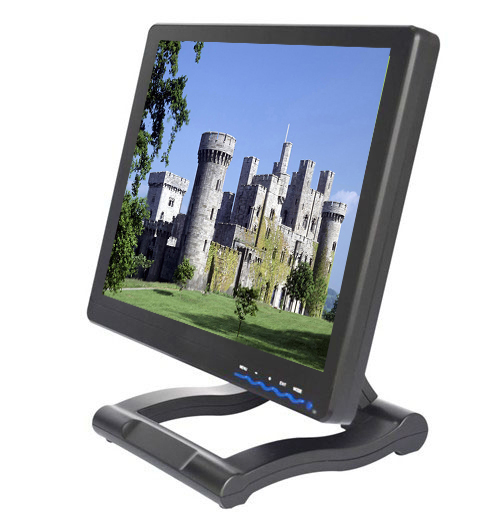

12.1" 3G-SDI Broacast Monitor with SDI,HDMI ,YPbPr Input




Advanced Features :



  1. Peaking Focus Assist
  2. Camera 5D II Mode
  3. Check Field
  4. Center Marker ,Screen Marker
  5. Full Screen Display in mode of Monitoring & Recording
  6. 4:3&16:9 image adjustable
  7. Front Earphone Jack
  8. Image Freeze & Flip
  9. Picture in Picture(PIP)
  10. H/V Delay  ,Tally Indicator
  11. False Colors
  12. Pixel-to-Pixel Mode
  13. Underscan/Overscan



Specifications :





Model Number

121-3HSD (121-3HD without SDI)

Screen Size

12.1 Inch with digital Panel

Resolution

800x600

Backlight

LED

Aspect Ratio

4:3

Contrast Ratio

900:1

Brightness

330cd/m2

HDMI Support Mode

1080/24p/25p/30p/;50i/50p;60i/60p;720/50p/60p;480i/480p: 576i/576p

Inputs

3G/HD/SD-SDI,HDMI,Component,Composite

Outputs

3G/HD/SD-SDI,Component,Composite,3.5mmAudio,Built-in Speaker

Viewing Angle

70°/70°(L/R) , 50°/80°(U/D)

Power Consumption

≤10W

Inpu Voltage

DC7V-24V±10%

Installation Way

1/4"-20 Thread Socket(All 4 Sides)

WoringTemperature

-2060

StorageTemperature

-3070

Unit Size

300L × 275W ×50H(mm)(folding)

Unit Weight

1840g

StandardAccessories

 BNC Cable x 3,  Tally Indicator Light x 1 ,Instruction Manual x 1



BNC to RCA Connector (3pcs ), Mini HDMI Cable x 1,  XLR Power Adaptor x 1

Optional Accessory

Foldable Bracket

Packing Details

5PCS /CTN



N.W./G.W.: 15/17KGS



Carton Size:  63x35.5x35CM









SDI Support Mode:



NO.

Resolution

Catalogue

1.

1080P@60HZ/59.94HZ

3G-SDI

2.

1080P@50HZ

3G-SDI

3.

1080I@60HZ/59.94HZ

HD-SDI

4.

1080I@50HZ

HD-SDI

5.

1080P@30HZ/29.97HZ

HD-SDI

6.

1080P@25HZ

HD-SDI

7.

 1080P@24HZ

HD-SDI

8.

720P@60HZ/59.94HZ

HD-SDI

9.

720P@50HZ

HD-SDI

10.

720P@30HZ/29.97HZ

HD-SDI

11.

720P@25HZ

HD-SDI

12.

 720I@24HZ/23.97HZ

HD-SDI

13.

480I@60HZ/59.94HZ

SD-SDI

14.

576I@50HZ

SD-SDI
