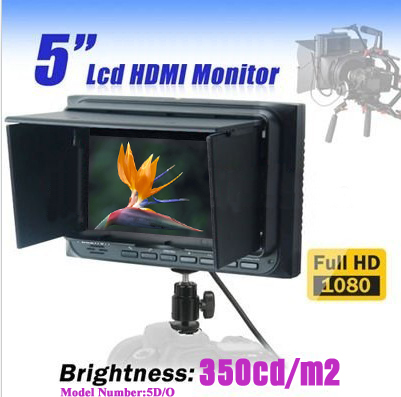

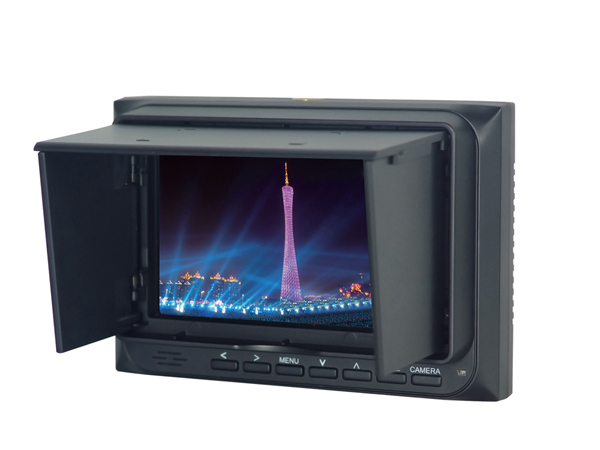

5 Inch On Camera Field HD Monitor
Classification: 5 Inch Published: 2013-08-19 10:20:03
- Price :
- Order

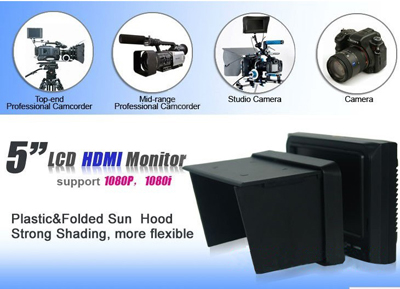

HDMI Input & Output 5 Inch Camera Field HD Monitor
Advanced Features :
- Peaking Focus Assist
- Camera 5D II Mode, Check Field
- Center Marker ,Screen Marker
- Full Screen Display in mode of Monitoring & Recording
- 4:3&16:9 image adjustable
- Front Earphone Jack
- Image Freeze & Flip
- Picture in Picture(PIP)
- H/V Delay ,Tally Indicator
- False Colors
- Pixel-to-Pixel Mode
- Underscan/Overscan
| Model Number | 5D/O(5D without HDMI Output) |
| Screen Size | 5 inch with digital panel |
| Resolution | 800x480,support up to 1920x 1440 |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Brightness | 350cd/m2 |
| Contrast Ratio | 500:1 |
| Viewing Angle |
70°/70°(L/R), 50°/70°(U/D) |
| Video Colory System | PAL-4.43, NTSC:3.58 |
| Response Time | 10ms |
| Horizontal Frequency Range | 30-60KHz |
| Field Frequency Range | 60Hz-75Hz |
| Distance | 0.045(W) x0.135(H)mm |

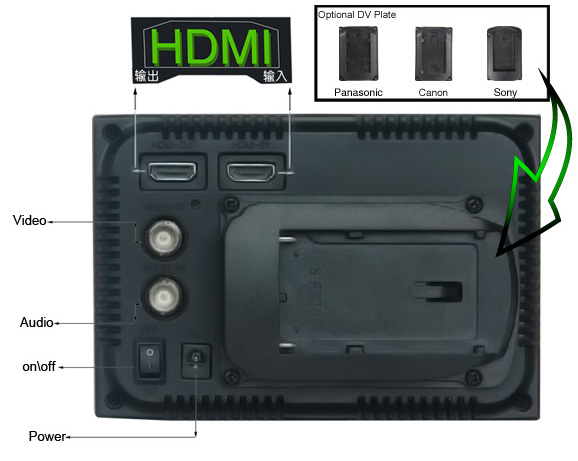

| Input Signal |
Video,Audio,HDMI |
| Output Signal | HDMI (optional) |
| HDMI & YPbPr supported Format |
1080/50i/60i/50p/60p;720/50p,720/60p;480i 480p, 576i 576p (50/60Hz) |
| Earphone Output | Stereo, 3.5mm interface |

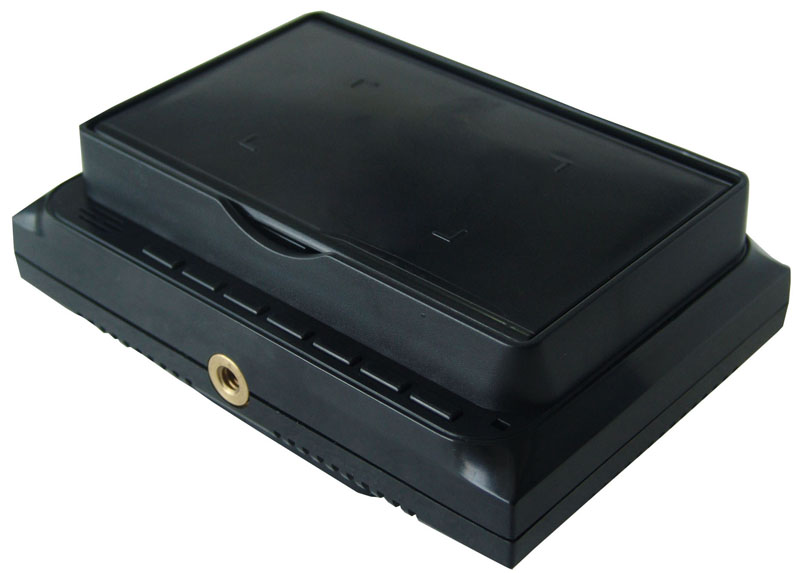

| Installing Way |
1/4"-20 Thread Socket(2 sides up&down) ,can be connected to Thermal Boots Stents or Magic Arm |
| Input Voltage | DC 6-24V |
| Power Consumption |
≦6W |
| Working Temperature |
-20℃～50℃ |
| Storage Temperature |
-30℃～65℃ |
| Unit Weight |
146(L)X100(W)X29(H)mm
146(L)X100(W)X46(H)mm (with sun cover)
|
| Unit Weight | 350g/450g(with sun cover) |
| Standard Accessories | Hot Shoe Mount x 1, Sun Cover x 1, Mini HDMI cable x1, Sony F970 Battery Plate x1, Instruction Manual x 1 |
| Packing Details | Optional Accessories |
| 10PCS/CTN | Canon LP-E 6 Battery Plate |
| N.W./G.W.: 14/16KGS | Panasonic D28 Battery Plate |
| Carton Size : 50x 45x28cm | DC 12V Power Adaptor |
