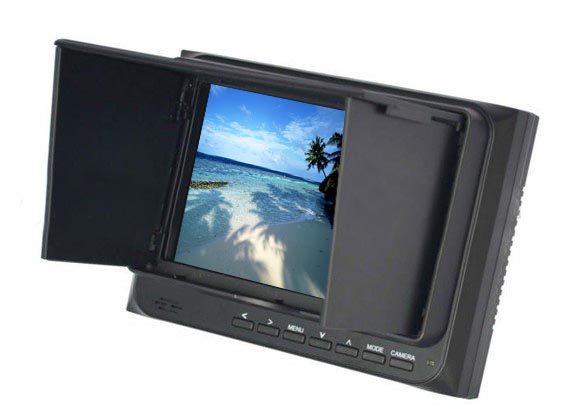

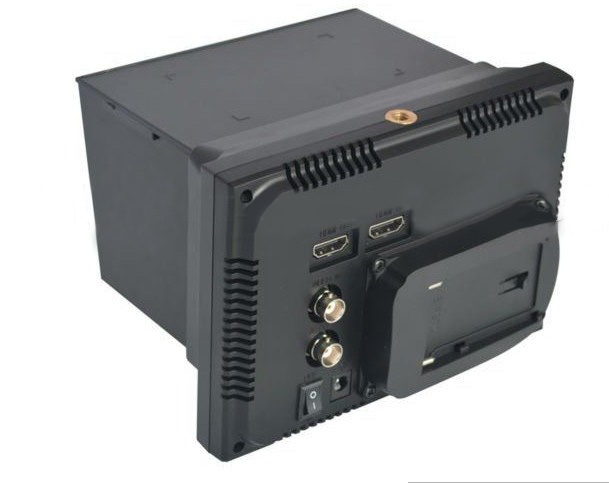

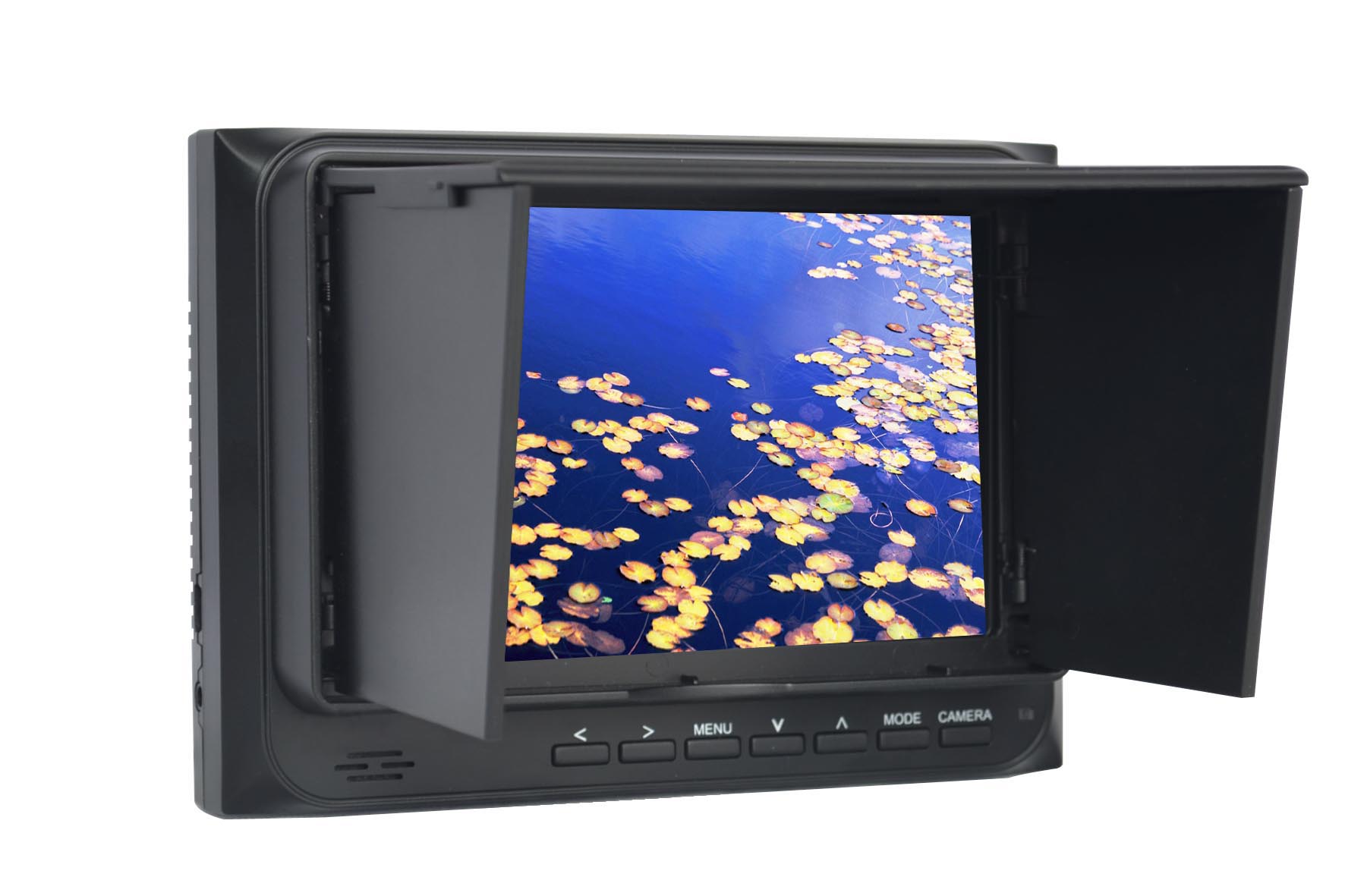

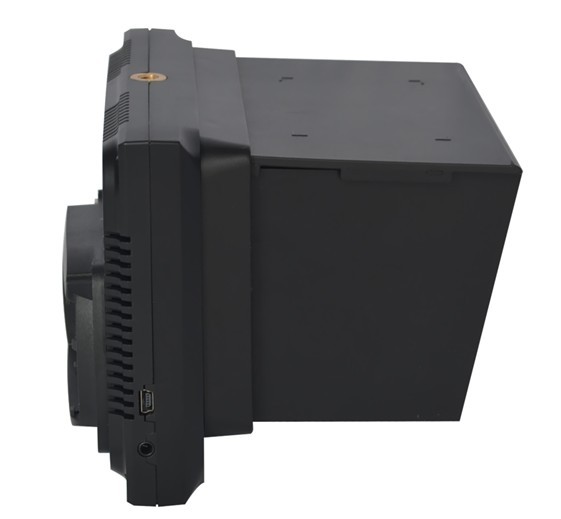

HDMI Input & Output 5.6 Inch Camera Field HD Monitor
Advanced Features :
- Peaking Focus Assist
- Camera 5D II Mode, Check Fiel，Center Marker ,Screen Marker
- Full Screen Display in mode of Monitoring & Recording
- 4:3&16:9 image adjustable
- Side Earphone Jack
-
|
Model Number |

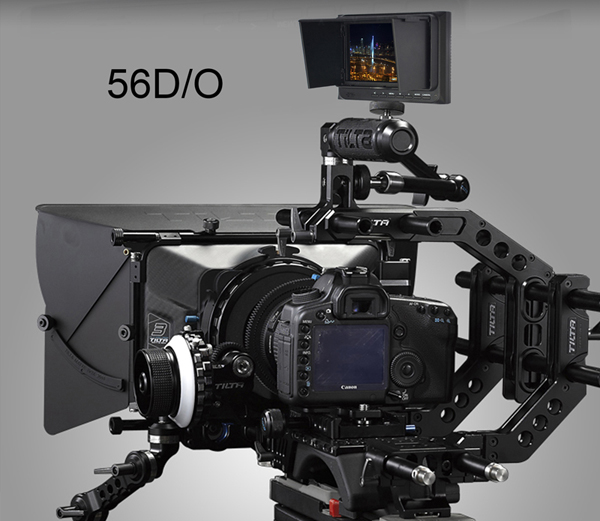

56D/O(56D without HDMI Output) |
|
Screen Size |
5.6 inch with digital panel |
|
Resolution |
1280x800,support up to 1920x 1440 |
|
Backlight |
LED |
|
Aspect Ratio |
16:9 |
|
Brightness |
220cd/m2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle |
85°/85°(L/R), 85°/85°(U/D) |
|
Video Colory System |
PAL-4.43, NTSC:3.58 |
|
Response Time |
15ms |
|
Horizontal FrequencyRange |
30-75KHz |
|
Field FrequencyRange |
60Hz-75Hz |
|
Distance |
|
|
Input Signal |
Video,Audio,HDMI |
|
Output Signal |
HDMI;Built-in Speaker |
|
HDMI & YPbPr supported Format |
1080/50i/60i/50p/60p;720/50p,720/60p;480i 480p, 576i 576p (50/60Hz) |
|
Earphone Output |
Stereo,3.5mminterface |
|
Installing Way |
1/4"-20 Thread Socket(2 sides up&down) ,can be connected to Thermal Boots Stents or Magic Arm |
|
Input Voltage |
DC 6-24V |
|
Power Consumption |
≦6W |
|
Working Temperature |
-20℃～50℃ |
|
Storage Temperature |
-30℃～65℃ |
|
Unit Weight |
162.5 × 117.2W ×44.4H(mm)
|
|
Unit Weight |
409g |
|
Standard Accessories |
Hot Shoe Mount x 1, Sun Cover x 1, Mini HDMI cable x1, Sony F970 Battery Plate x1, Instruction Manual x 1 |
|
Packing Details : |
Optional Accessories : |
|
10PCS/CTN |
Canon LP-E 6BatteryPlate |
|
N.W./G.W.: 14/16KGS |
Panasonic D28BatteryPlate |
|
Carton Size : 50x 45x28cm |
DC 12V Power Adaptor |
