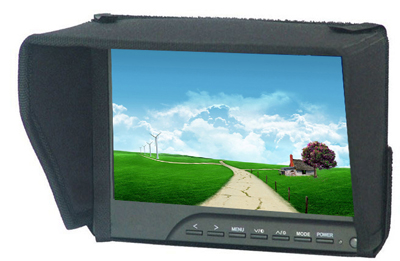

HDMI ,VGA ,Video Input 7 Inch Camera Field HD Monitor
Advanced Features :
- Peaking Focus Assist
- Camera 5D II Mode, Check Fiel，Center Marker ,Screen Marker
- Full Screen Display in mode of Monitoring & Recording
- 4:3&16:9 image adjustable
- Side Earphone Jack
|
Model Number |
689HD |
|
Screen Size |
7 inch with digital panel |
|
Resolution |
800x480,support up to 1920x 1440 |
|
Backlight |
LED |
|
Aspect Ratio |
16:9 |
|
Brightness |
400cd/m2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle |
70°/70°(L/R), 50°/70°(U/D) |
|
Input Signal |
Video, Audio, HDMI, VGA |
|
Output Signal |
Built in Speaker |
|
HDMI & YPbPr supported Format |
1080/50i/60i/50p/60p;720/50p,720/60p;480i 480p, 576i 576p (50/60Hz) |
|
Installing Way |
1/4"-20 Thread Socket(1 bottom side ) |
|
Input Voltage |
DC 6-14V |
|
Power Consumption |
≦6W |
|
Working Temperature |
-20℃～50℃ |
|
Storage Temperature |
-30℃～65℃ |
|
Unit Weight |
182L × 127W × 30H(mm) |
|
Unit Weight |
409g |
|
Standard Accessories |
DC12V Power Adaptor x 1, Sun Cover x 1, Mini HDMI cable x1, Instruction Manual x 1 |
|
Packing Details: |
Optional Accessories: |
|
10PCS/CTN |

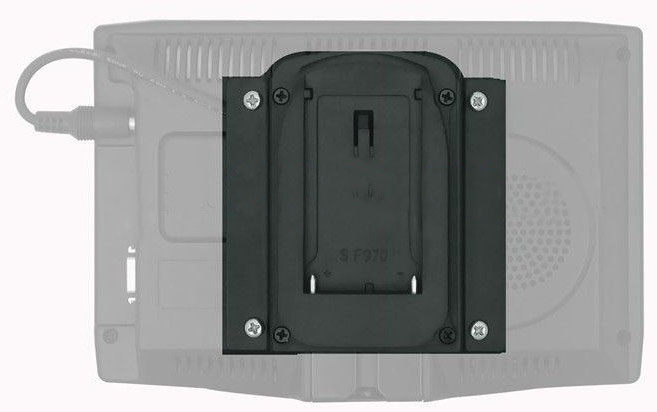

Canon LP-E 6 Battery Plate ,Sony F970BatteryPlate |
|
N.W./G.W.: 14/16KGS |
Panasonic D28BatteryPlate |
|
Carton Size : 50x 45x28cm |

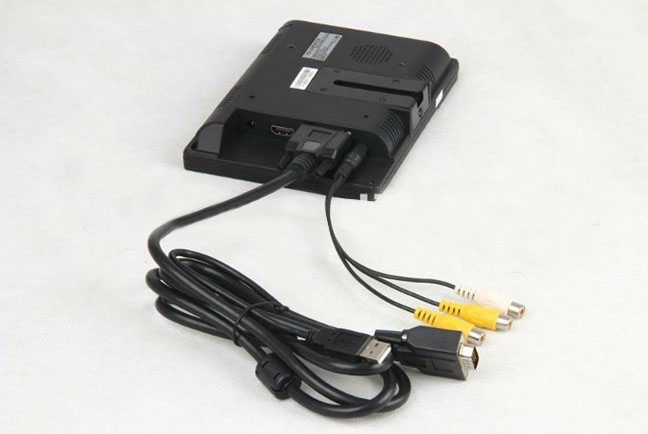

AV Cable ,Hot Shoe Mount |
