HDMI Input & Output 7 Inch Camera Field HD Monitor
Classification: 7 Inch Published: 2013-08-19 22:09:31
  • Price : Negotiable
  • Order

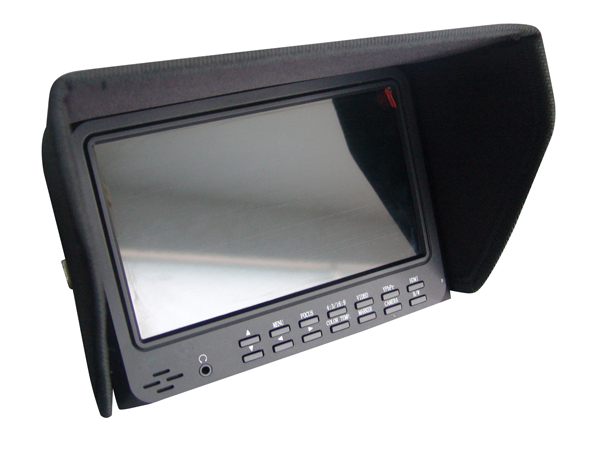

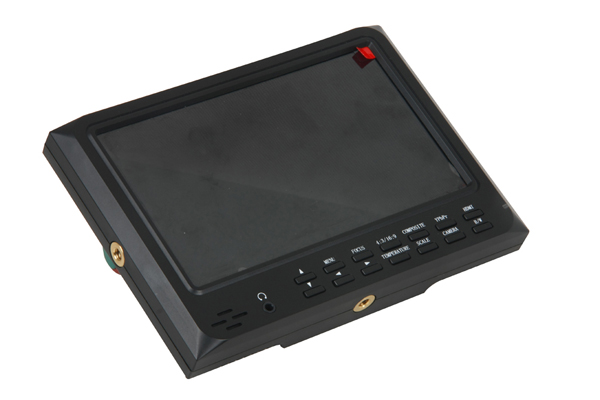

HDMI Input & Output 7 Inch Camera Field HD Monitor



Advanced Features :



  1. Peaking Focus Assist
  2. Camera 5D II Mode, Check FielCenter Marker ,Screen Marker
  3. Full Screen Display in mode of Monitoring & Recording
  4. 4:3&16:9 image adjustable
  5. Front  Earphone Jack



Specifications :



Model Number

7D/O (7D without HDMI output)

Screen Size

7 inch with digital panel

Resolution

1024x600,support up to 1920x 1440

Backlight

LED

Aspect Ratio

16:9

Brightness

250cd/m2

Contrast Ratio

700:1

Viewing Angle

75°/75°(L/R), 70°/75°(U/D)

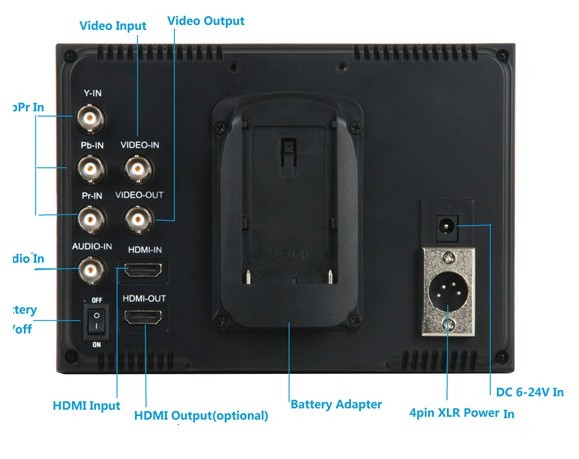

Input Signal

HDMI;Video 1;YPbPr;Audio

Output Signal

HDMI;Video;3.5mm Audio; Built-in Speaker

HDMI  supported Format

1080/50i/60i/50p/60p;720/50p,720/60p;480i 480p, 576i 576p (50/60Hz)

Installing Way

1/4"-20 Thread Socket(All 4 sides  )

Input Voltage

DC 6-14V

PowerConsumption

6W

WorkingTemperature

-2050

Storage Temperature

-3065

Unit Weight

188.4L × 134W × 34.2H(mm)

Unit Weight

450g

StandardAccessories

SONY F970 Battery Plate x 1, Sun Cover x 1, Mini HDMI cable x1,Hot Shoe Mount x1 ,Instruction Manual x 1


Packing Details :

Optional Accessories:

10PCS/CTN

Canon LP-E 6 Battery Plate , Sony V-Mount Battery Plate

N.W./G.W.: 14/16KGS

Panasonic D28S / D54 Battery Plate ,Panasonic Anton Plate

Carton Size : 50x 45x28cm

DC 12V Power Adaptor
