HDMI Input & Output 7 Inch Camera Field HD Monitor
Classification: 7 Inch Published: 2013-08-19 22:22:39
  • Price : Negotiable
  • Order


HDMI Input & Output 7 Inch Camera Field HD Monitor



Advanced Features :

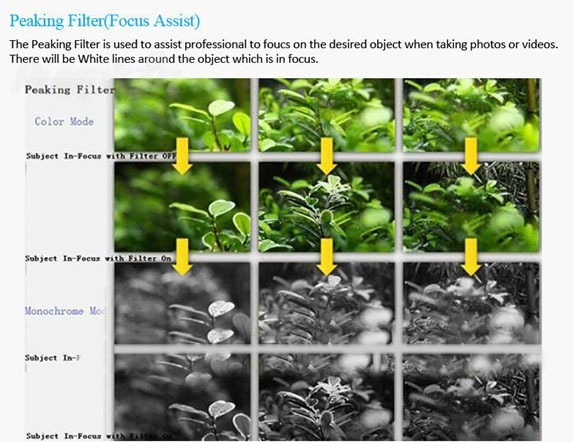

  1. Peaking Focus Assist in red

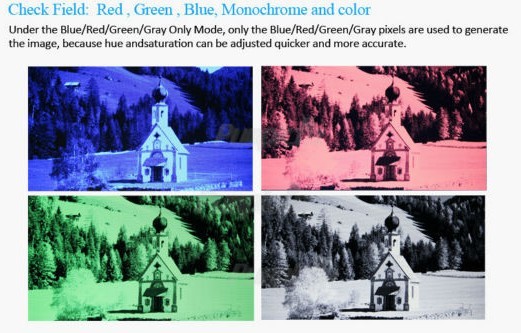

  2. Camera 5D II Mode, Check Field
  3. Exposure(Zebra), Brightness Histogram
  4. Center Marker ,Screen Marker
  5. Full Screen Display in mode of Monitoring & Recording
  6. 4:3&16:9 image adjustable
  7. Front Earphone Jack
  8. Image Freeze & Flip
  9. Picture in Picture(PIP)
  10. H/V Delay  ,Tally Indicator
  11. False Colors
  12. Pixel-to-Pixel Mode
  13. Underscan/Overscan


Specifications :



Model Number

7DII/O

Screen Size

7 Inch with digital Panel

Resolution

1024x600(support up to 1920x1440)

Backlight

LED

Aspect Ratio

16:9

Contrast Ratio

700:1

Brightness

250cd/m2

HDMI Support Mode

1080/24p/25p/30p/;50i/50p;60i/60p; 720/50p/60p;480i/480p: 576i/576p

Inputs

HDMI;Video 1;YPbPr;Audio

Outputs

HDMI;Video;3.5mm Audio; Built-in Speaker

Viewing Angle

75°/75°(L/R) ,70°/75°(U/D)

Power Consumption

≤ 6W

Inpu Voltage

DC 6-14V

Installation Way

1/4"-20 Thread Socket(All 4 Sides)

WoringTemperature

-2050

StorageTemperature

-3065

Unit Size

188.4L × 134W × 34.2H(mm)

Unit Weight

520g

StandardAccessories

Sony F970 Plate x 1,   Sun Cover x1



Hot Shoe Mount x 1, Mini HDMI Cable x 1, Instruction Manualx 1

Optional Accessory

DC 12V Power Adaptor, Canon LP-E6 Battery Plate , Panasonic D28 Battery Plate

Packing Details

5PCS /CTN



N.W./G.W.: 12/13KGS



Carton Size:  58x32x26.8CM
