5 On Camera Field LCD Monitor
Classification: 5 Inch Published: 2013-08-21 10:24:35

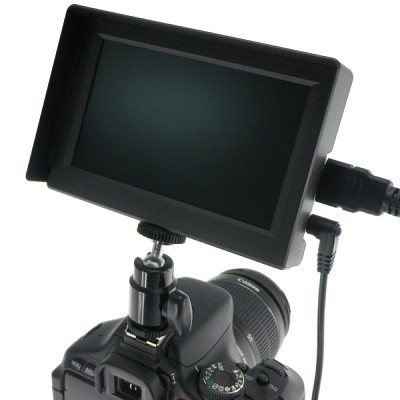

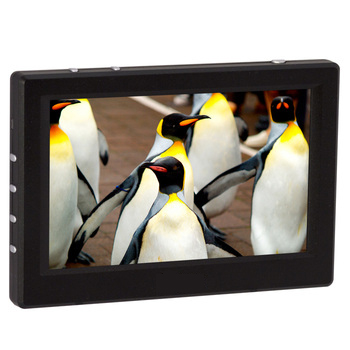

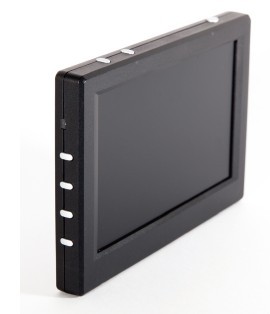

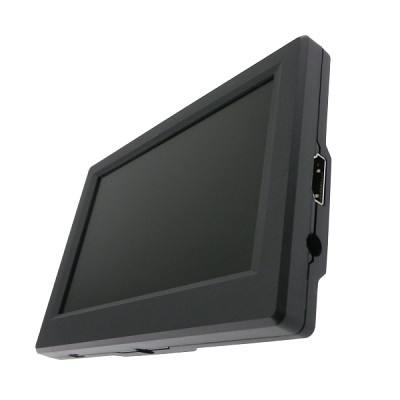

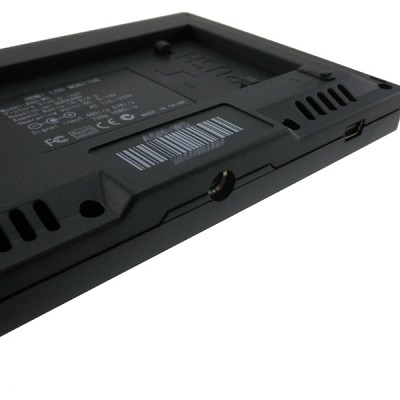

5" On Camera Field LCD Monitor with HDMI Input Peaking,Blue Gun,Guides ,Tint



Advanced Features:

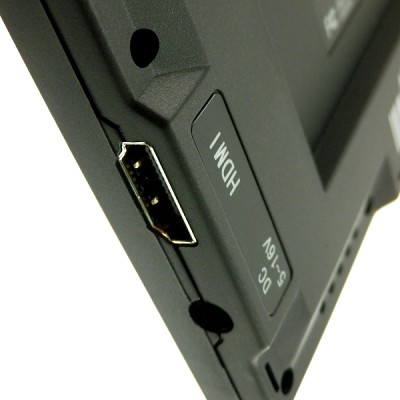

  1. HDMI Input
  2. Peaking
  3. Under Scan
  4. Guides
  5. Blue Gun
  6. Tint
  7. RGB Adjustable
  8. Native 5D Live View Output

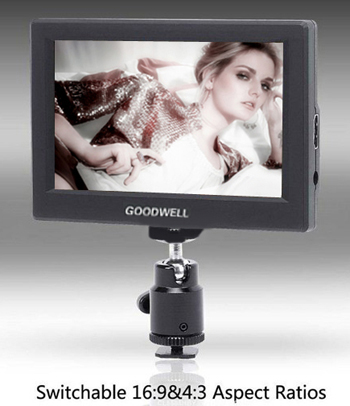

  9.  16:9 & 4:3 Switchable
  10. Signal Input :480i/p,576i/p,720p,1080i/p
  11. OSD Language: English ,Chinese
  12. Super Slim :1.6cm for depth


Specifications :


Model Number  GW-501HBY
Screen Size  5 inch with digital panel
Resolution  800x480
Backlight  LED
Contrast Ratio 600:1
Brightness 400cd/m2
Aspect Ratio 16:9
Color Arrangement  RGB Stripe
Surface Treatment Anti-Glare
Viewing Angle 150(H),130(V) degree
Operating Voltage  DC5-16V
Power Consumption  7.5W
Unit Size  91(H)x 134(W)x16(D) mm
Unit Weight  150g ,0.33(lb)
Menu Language  Chinese ,English
StandardAccessories

DC 12V Power Adaptor x 1, Sun Shade x2 , Battery Plate x 2 ( LP-E6/D54S/NP-960/BP-945,choose two of battery plate)

 Instruction Manual x 1

Packing Details  16PCS /CTN , Carton Size: 44x36x40cm

N.W./G.W.:12/13KGS
