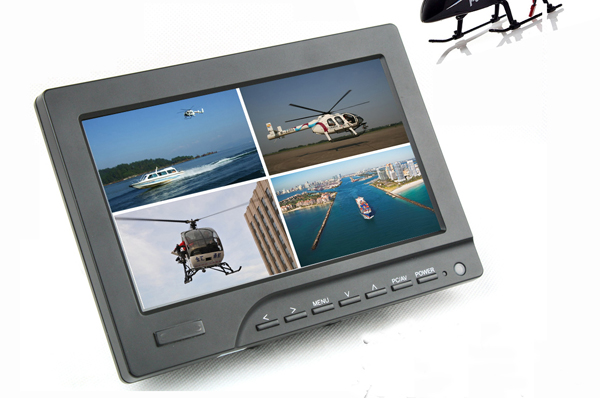

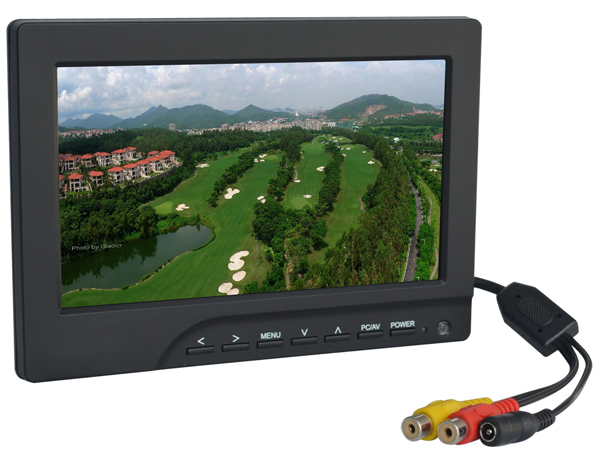

7 Inch FPV Monitor for Ground Station
Classification: 7 Inch Published: 2013-08-21 16:52:05


7 Inch FPV Monitor for Ground Station ,

No Blue Screen, High Brightness




Advanced  Features:



1.       NO Blue Screen

2.       Default Display View

3.       400cd/mhigh brightness

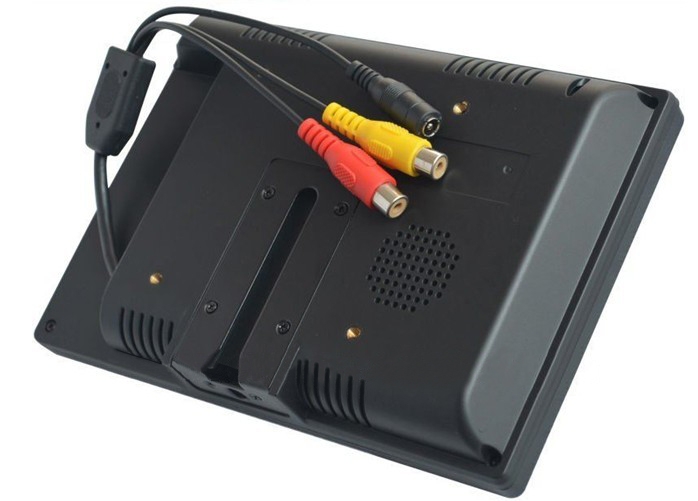

4.       Supports Composite Video RCA Input

5.       Display Resolution up to 1920x1440 Pixels

6.       16:9 or 4:3 Adjustable Display Ratio





Specifications :



Description

7" FPV monitor for Aerial Photography

Model Number

FPV-769A

Screen Size

7 inch

Resolution

800x480,support up to 1920x1440

Backlight

LED

Aspect Ratio

16:9

Contrast Ratio

500:1

Brightness

400cd/m2

Support Video Format

NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.

Viewing Angle

70°/70°(L/R) , 50°/70°(U/D)

Input Signal

RCA, Video,Audio,DC Input

Speaker

Built in ,1W

Input Voltage

DC 6-12V

PowerConsumption

≦8W

WorkingTemperature

-1055

Storage Temperature

-2065

Install Way

"1/4"-20 Thread and VESA mounting socket(75mm)

Unit Size

182L × 127W × 30H(mm)

Unit Weight

360g

StandardAccessories

 Sun Shade x1 , Instrcution Manual x 1

Optional Accessories

Hot Shoe Mount , DC 12V Power Adaptor, SONY F970 Battery Plate ,Canon LP-E6BatteryPlate

Packing Details

10PCS/CTN,  Carton Size : 50x45x28cm , N.W./G.W.: 14/16KGS
