10.1 Inch Ground Station FPV Monitor ,No Blue Screen ,High Resolution
Classification: 10.1 Inch Published: 2013-08-21 17:53:30
  • Price : Negotiable
  • Order

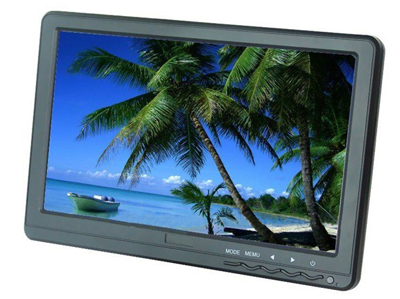

10.1 Inch Ground Station FPV Monitor

No Blue Screen ,High Resolution



Advanced  Features:





1.       NO Blue Screen

2.       Default Display View

3.       450cd/mhigh brightness, 1024x600(1366x768 optional) high resolution

4.       Supports Composite Video RCA Input

5.       Display Resolution up to 1920x1440 Pixels

6.       16:9 or 4:3 Adjustable Display Ratio




Specifications :





Description

10.1" FPV monitor for Aerial Photography

Model Number

FPV-101AH

Screen Size

10.1 inch

Resolution

1042x600 (1366x768 optional) ,support up to 1920x1440

Backlight

LED

Aspect Ratio

16:9

Contrast Ratio

500:1

Brightness

450cd/m2 for 1024x600 , 200 cd/m2 for 1366x768

Support Video Format

NTSC M, PAL M, NTSC BG, PAL N, NTSC DK, PAL DK, PAL I and SECAM BG.

Viewing Angle

45°/45°(L/R) ,   15°/35°(U/D)

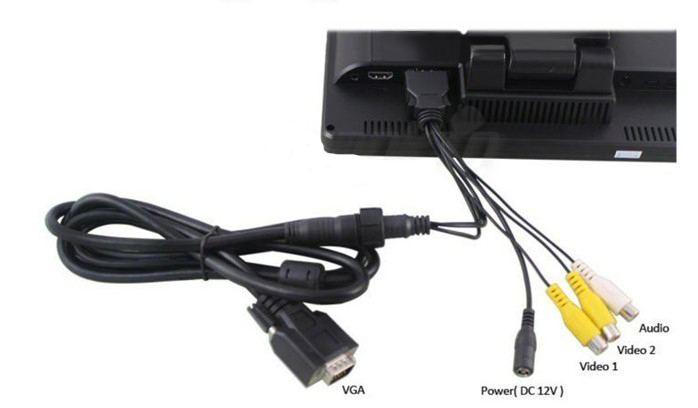

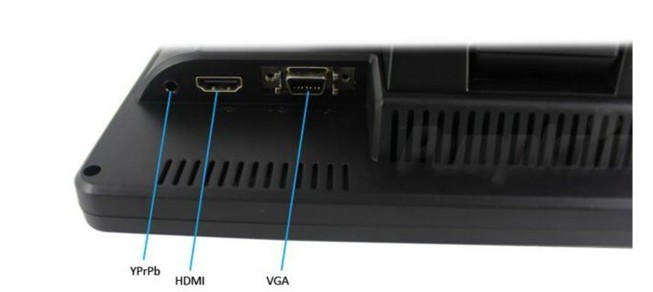

Input Signal

AV,VGA,HDMI,YPBPR
Speaker

Built in ,1 W

Input Voltage

DC12V±15%

PowerConsumption

≦8W

WorkingTemperature

-2060

Storage Temperature

-2065

Install Way

"1/4"-20 Thread and VESA mounting socket(75mm)

Unit Size

255(L)x163(W)x34(H)mm

Unit Weight

1040g

StandardAccessories

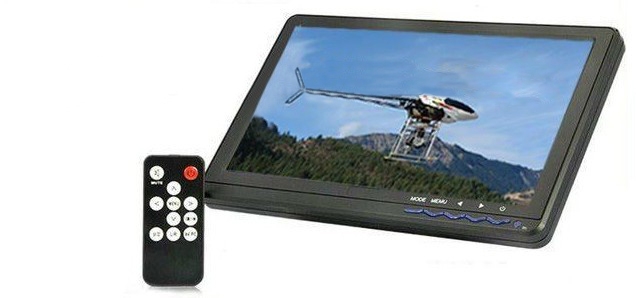

SKS Cable x 1,  VGA cable x1,  Remote Controller x1, Home AC Adaptor x 1 , Sun Shade x1 , Instrcution Manual x 1

Optional Accessories

Hot Shoe Mount ,  SONY F970 Battery Plate ,Canon LP-E6BatteryPlate , Panasonic D28S/D54  Battery Plate,Foldable Stand

Packing Details

10PCS/CTN,  Carton Size : 48x44x36cm, N.W./G.W.: 19/20KGS
