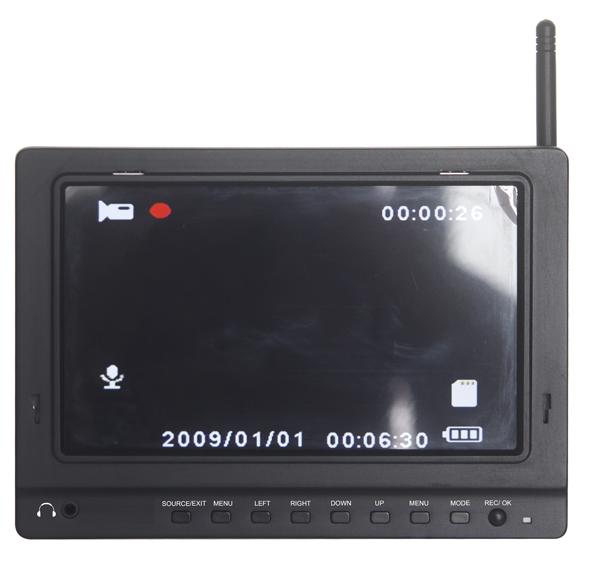

7 Inch HD FPV Monitor built in Wireless 5.8GHz AV Receiver and DVR
Classification: 7 Inch Published: 2013-08-21 18:22:44
- Price : Negotiable
- Order
7 Inch HD FPV Monitor built in Wireless 5.8GHz AV Receiver and DVR ,No Blue Screen
Applications:
- Wireless Baby monitor
- Wireless video leisure goods
- DVD/DVB AV wireless transfer

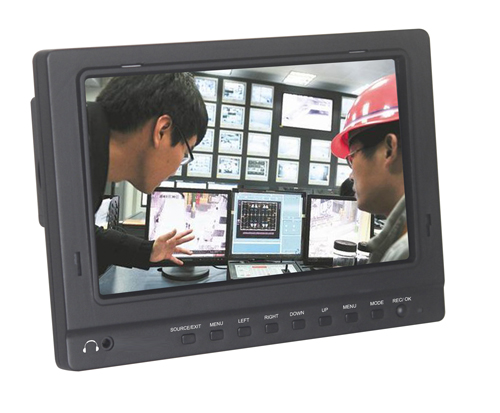

- Engineering construction monitor
- Wireless camera security system
- Wireless video medical apparatus
-

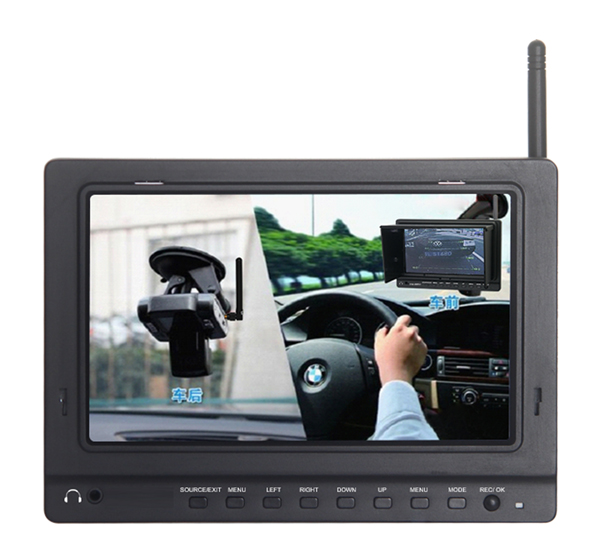

Wireless visual reversing camera transmission
Advanced Features :
| Character | Photography Functions |
|
RCA Connector(BNC Optional) |
Peaking Focus Assist |
| Portable DVR |
Camera 5D II Mode |

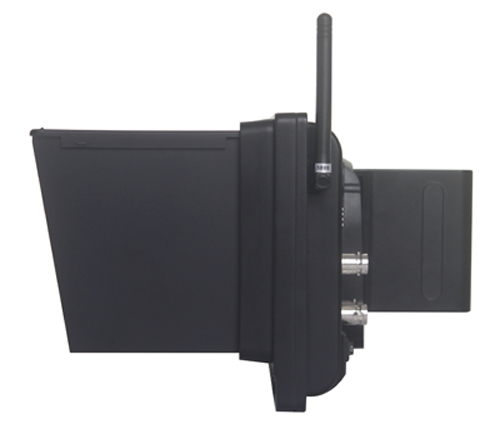

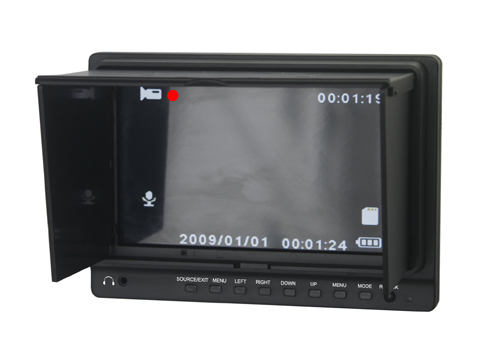

| Plastic Sun Shade |
Check Field |
|
TF Card support max up to 32G |
Screen Marker |
| No Blue Screen |
Centre Marker |
| 8 Channels Receiver |
4:3 &16:9 image adjustable |
| Motion Detection |
Full Screen Display in mode of Monitoring & Recording |
| Cycle Recording |
|
|
High Sensitivity:-90dBM |
|
|
Frequency Control |
|
Specifications :
| Description |
7" Wireless Built-in Receiver 5.8GHz HD FPV Monitor |
| Model Number | PVR-758 |
| Screen Size | 7 Inch |
| Resolution |
1024X600 pixels (suport max to1920×1440) |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 700:1 |
| Brightness | 250cd/m2 |
| Response Time | 10ms |
| Support Video format |
PAL-4.43,;NTSC-3.58 |
| Viewing Angle |
75°/75°(L/R), 75°/75°(U/D) |
| Input Signal |

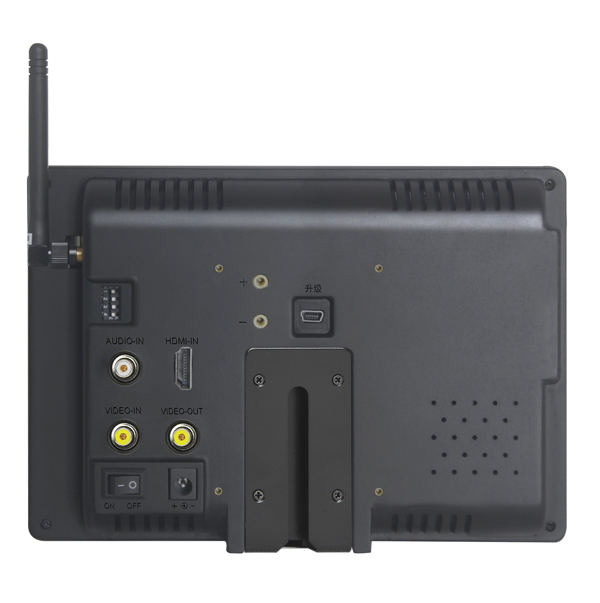

Video,Audio,RF,HDMI,TF Card Insert |
| Output Signal |
Video,3.5mm Earphone Jack |
| Input Voltage | DC6-24V |
| Power Consumption |
≦8W |
| Working Temperature |
-20℃～60℃ |
| Stroage Temperature |
-30℃～70℃ |
| Install Way |
"1/4"-20 Thread mounting socket |
| Unit Size | 189(L)x 134(W)x32(H)mm |
| Unit Weight | 450g |

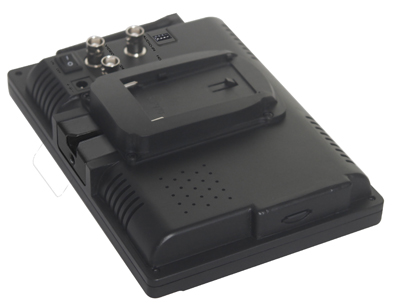

| StandardAccessories | Sun Shade x1, Sony F970 Battery Plate x1, Mini HDMI cable x1 |
|
|
Antenna x1, Instruction Manual x1 |
| OptionalAccessories | Power Adaptor, Li-Ion Battery , Cano LP-E6 Battery Plate, Panasonic D28S battey Plate |
| Packing Details | 10PCS/CTN , N.W./G.W.:14/16KGS |
|
|
Carton Size:50x44.5x27.4CM |
Wireless Built-in Receiver 8 Standard Channels:
|
Channel SN. |
CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|
Receiver (MHZ) |
5705 | 5685 |
5665 |
5645 |
5885 |
5905 | 5925 | 5945 |
|
Pin Electronic Level CH1 |
0 | 1 | 0 | 1 | 0 | 1 | 0 | 1 |
|
Pin Electronic Level CH12 |
0 | 0 | 1 | 1 | 0 | 0 | 1 | 1 |
|
Pin Electronic Level CH3 |
0 | 0 | 0 | 0 | 1 | 1 | 1 | 1 |
