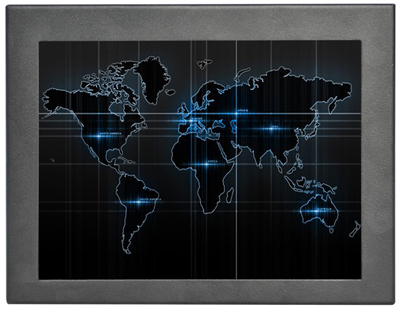

HDMI Input 8 Inch LCD Open Frame Monitor with IPS Panel
Specifications :
|
Model Number |
P823-3AHT (P823-3AH without touch) |
|
Screen Size |
8 inch with digital panel |
|
Resolution |
1024x768 pixels ( support up to1920×1440) |
|
Backlight |
LED |
|
Aspect Ratio |
4:3 |
|
Contrast Ratio |
800:1 |
|
Brightness |
350cd/m2 |
|
Viewing Angle |
85°/85°(L/R), 85°/85°(U/D) |
|

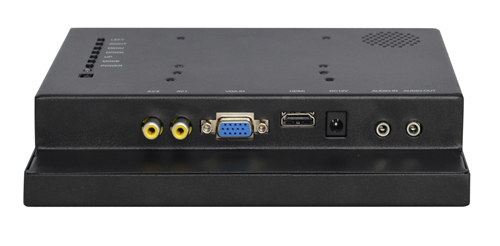

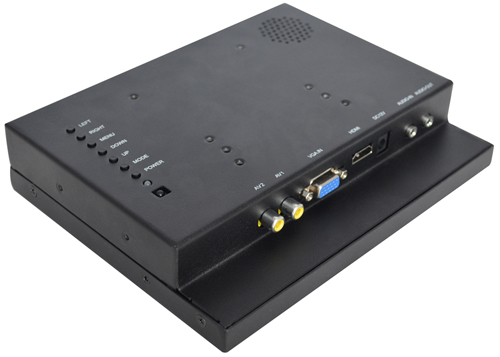

Input Signal |
VGA,Audio,Video1,Video2,HDMI |
|
Output Signal |
Audio |
|
Input Voltage |
DC12V±15% |
|
Power Consumption |
≦6W |
|
Working Temperature |
-20℃～60℃ |
|
Storage Temperature |
-30℃～70℃ |
|

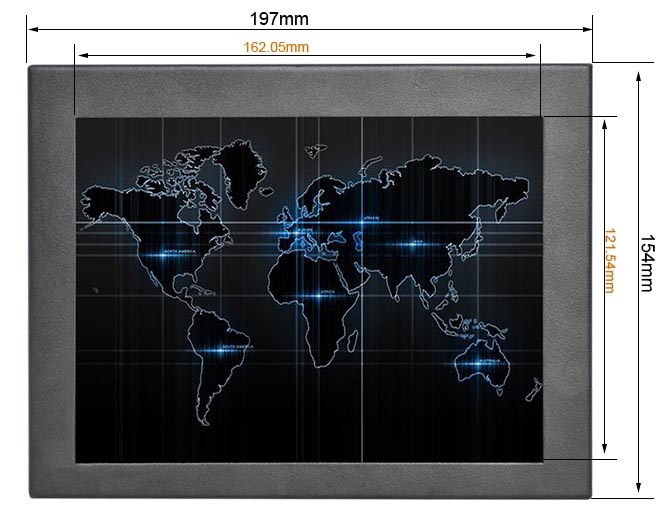

Unit Size |
197L × 153W × 40H(mm) |
|
Unit Weight |
1500g |
|
StandardAccessories |
VGA Cable x1, DC Power Adaptor x1, Remote controller x1 Touch Pen x1(for touch ), Touch Driver disc x1 (for touch ) |
|
PackingDetails |
10PCS/CTN |
|
|
N.W./G.W.: 18/19KGS |
|
|
Carton Size: 48x44x36cm |
