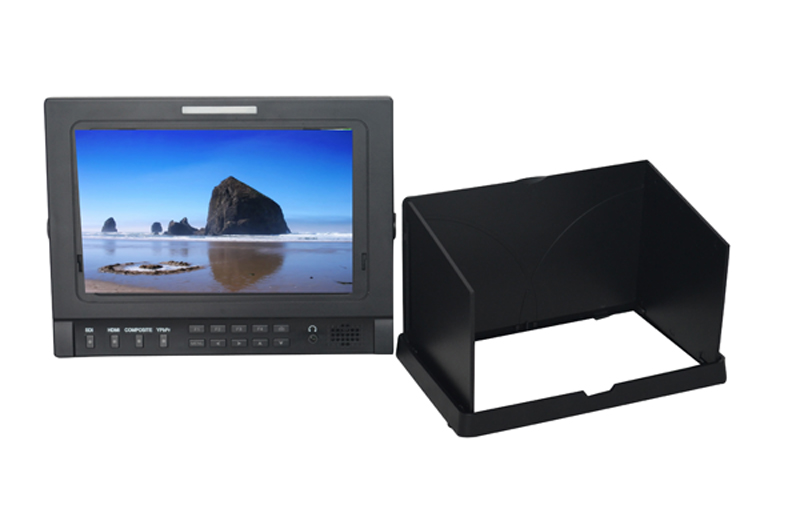

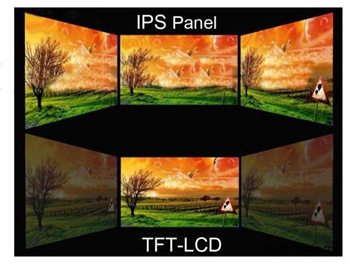

IPS Panel 7 Inch Camera Field HD Monitor with SDI,HDMI,YPbPr Input
Classification: 7 Inch Published: 2013-08-22 13:09:40
  • Price : Negotiable
  • Order



IPS Panel 7 Inch Camera Field HD Monitor with SDI,HDMI,YPbPr Input


Advanced Features :



1.                              Peaking Focus Assist in red

2.                              Camera 5D II Mode, Check Field

3.                              Exposure(Zebra), Brightness Histogram

4.                              Center Marker ,Screen Marker

5.                              Full Screen Display in mode of Monitoring & Recording

6.                              4:3&16:9 image adjustable

7.                              Front Earphone Jack

8.                              Image Freeze & Flip

9.                              Picture in Picture(PIP)

10.                           H/V Delay  ,Tally Indicator

11.                           False Colors

12.                           Pixel-to-Pixel Mode

13.                           Underscan/Overscan




Specifications :





Model Number

1D/S/O

Screen Size

7 Inch with digital Panel

Resolution

1280X800

Backlight

LED

Aspect Ratio

16:9

Contrast Ratio

800:1

Brightness

400cd/m2

HDMI Support Mode

1080/24p/25p/30p/;50i/50p;60i/60p;720/50p/60p;480i/480p: 576i/576p

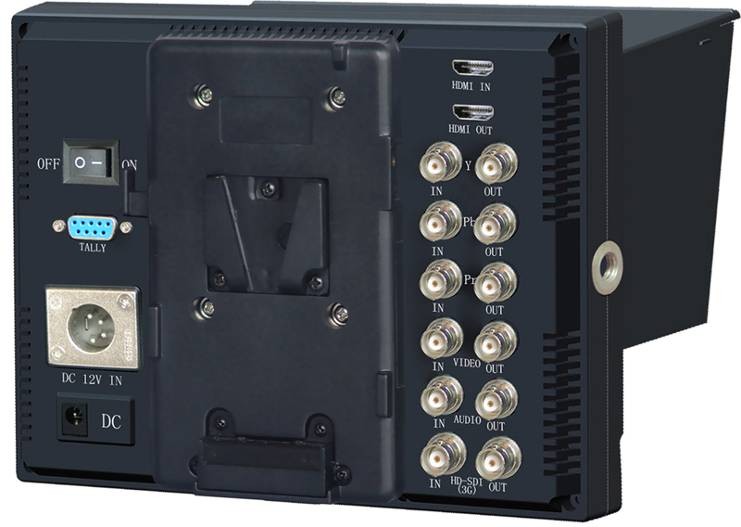

Inputs

3G/HD/SD-SDI,HDMI,Component,Composite

Outputs

3G/HD/SD-SDI,Component,Composite,3.5mmAudio,Built-in Speaker

Viewing Angle

89°/89°(L/R) ,89°/89°(U/D)

Power Consumption

≤ 8.5 W

Inpu Voltage

DC7-24V or 4-Pin XLR

Installation Way

1/4"-20 Thread Socket(All 4 Sides)

WoringTemperature

-2060

StorageTemperature

-3070

Unit Size

210L × 160W ×41.6H(mm)

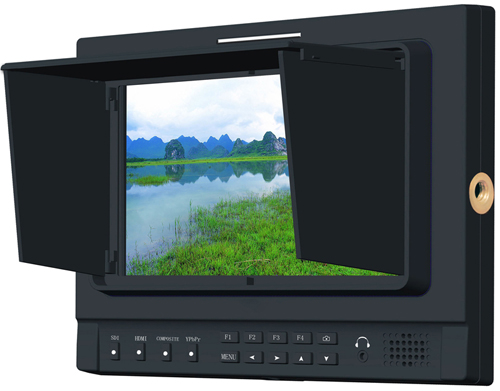

210L × 160W ×148.9H(mm)(with sun shade)

Unit Weight

800g /850g(with sun shade )

StandardAccessories

Sony F970 Plate x 1,  Tally Indicator Light x 1 ,Sun Cover x1



Hot Shoe Mount x 1, Mini HDMI Cable x 1, Instruction Manualx 1

Optional Accessory

BNC Cable, BNC to RCA Connector,XLR Power Adaptor, AC Power Adaptor

Packing Details

5PCS /CTN



N.W./G.W.: 12/13KGS



Carton Size:  58x32x26.8CM









SDI Support Mode:



NO.

Resolution

Catalogue

1.

1080P@60HZ/59.94HZ

3G-SDI

2.

1080P@50HZ

3G-SDI

3.

1080I@60HZ/59.94HZ

HD-SDI

4.

1080I@50HZ

HD-SDI

5.

1080P@30HZ/29.97HZ

HD-SDI

6.

1080P@25HZ

HD-SDI

7.

 1080P@24HZ

HD-SDI

8.

720P@60HZ/59.94HZ

HD-SDI

9.

720P@50HZ

HD-SDI

10.

720P@30HZ/29.97HZ

HD-SDI

11.

720P@25HZ

HD-SDI

12.

 720I@24HZ/23.97HZ

HD-SDI

13.

480I@60HZ/59.94HZ

SD-SDI

14.

576I@50HZ

SD-SDI
