7 Inch Embedded WIN CE 5.0 OS Touch Industrial Panel PC
Classification: 7 Inch Published: 2013-08-22 16:42:14
- Price : Negotiable
- Order
7 Inch Embedded WIN CE 5.0 OS Touch Industrial Panel PC
Applications:
- Industrial control system
- Automotive media center, telematics and navigation
- Ultra mobile PC
- Personal Media Player
- Home automation and media center
- Order management system
- E-education device
- Advertising digital signature
Specifications :
| Model Number | W7 |
| Screen Size | 7 Inch |
| Resolution | 800x480 |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m2 |
| Power Input | DC9-24V |
| Audio Output | 1W |
| Power Consumption | 8W |

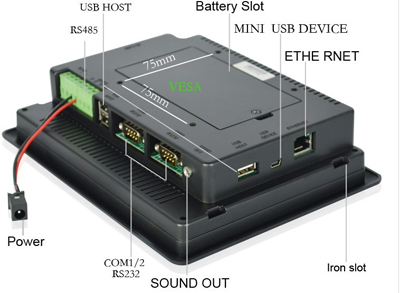

| Support Interface |
RS232 interface 、RS485 interface、SD card slot、Ethernet |
| Processor(CPU) |
Samsung s3c2416 533MHZ |
| Memory |
128MB flash、128MB Dynamic random access memory |
| Nand Flash | 2GB |
| ROM |
128MB DDR2 |
| SD RAM | 128MB |
| Lan Port | RJ 45 |
|
USB HOST1.1 |
3 |
|
MINI USB interface |
1 |
| RS232 Port | 2 |
| RS485 Port | 2 |
| Earphone Jack | 1 |
| WIFI | built in |
| Bluetooth | optional |
| SD Card Slot |
1（support max to 4GB） |

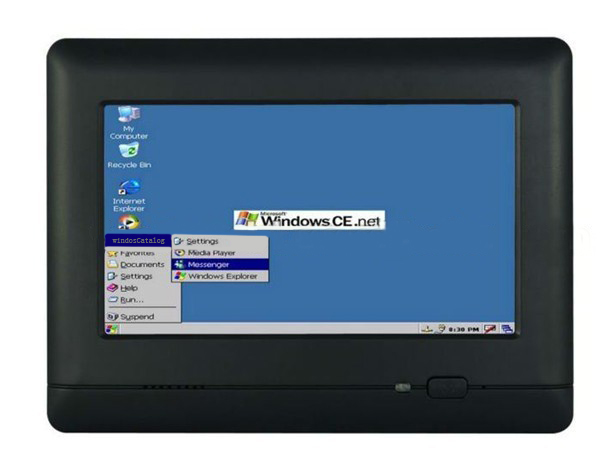

| OS | Window CE 5.0 |
| Net.Framework | 3.5 |
| Touchscreen | 4 wire resistive touch |
| Unit Size |
200×150×50 mm |
| Unit Weight | 520g |
| StandardAccessories | Mini USB Cable x1, Touch Pen x1, CD Rom x1, Fixed Irons x 4, Instruction Manual x 1 |
| Packing Details | 10PCS/CTN |
|
|
N.W./G.W.:10/11KG |
|
|
Carton Size: 48x27.4x50cm |
