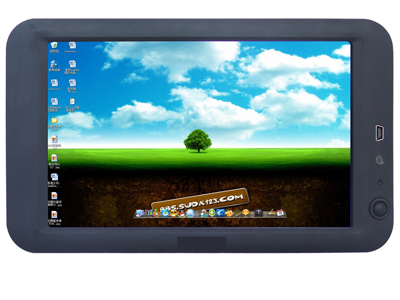

7 Inch Embedded WIN CE 6.0 OS Touch Tablet PC
Applications:
- Industrial control system
- Automotive media center, telematics and navigation
- Ultra mobile PC
- Personal Media Player
- Home automation and media center
- Order management system
- E-education device
- Advertising digital signature
Specifications :
Li-Ion Battery (7.4V,2500mA, Work Hour :4 Hours), WIFI, Bluetooth
Model Number
PC 659
Screen Size
7 inch with digital panel
Resolution
800x480
Aspect Ratio
16:9
Brightness
250cd/m2
Contrast Ratio
500:1
Viewing Angle
70°/70°(L/R)
, 50°/70°(U/D)
CPU
Samsung s3c6410,533MHz
Memory
DDR256M
Nand Flash
2GB
OS
Win CE 6.0

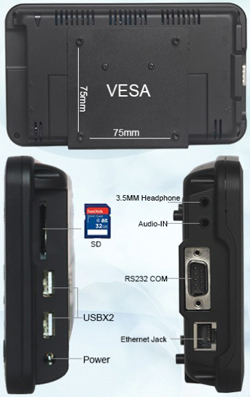

Mini USB Input
USB Device 2.0 input for PC
SD Card Slot
Support Max to 32G
Mini USB 2.0
1
USB Host
2
Lan Port
1x RJ45
RS232
1
3.5 mm EarphoneJack
1
3.5 mm Audio input
1
Input Voltage
DC 9-24V
Max Consumption
≤ 5 W
Touch Screen
4 wire Resistive touch
WorkingTemperature
0℃～50℃, 0-85%RH
Storage Temperature
-10℃～60℃, 0-75% RH
Unit Size
194(L)x114(W)x 29.5(H)mm
Unit Weight
400g
StandardAccessories
Home Power Adaptor x1, Mini USB Cable x1, Touch Pen x1
Touch Driver Disc x1, VESA Metal Clip x1
OptionalAccessories
RS232 Cable, 3.5mm Audio Cable,Car Power Adaptor
