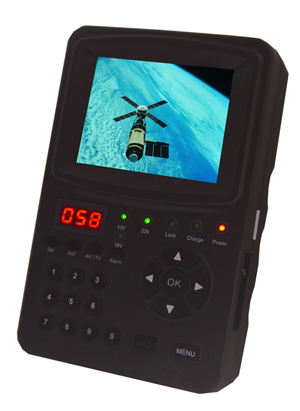

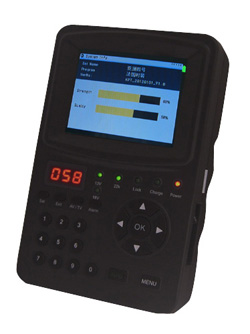

3.5 Inch Handheld Digital Satellite Finder
Support DVB-S/S2 Signal
Main Features:
1. Fast satellite signals identification
2.Supports DVB-S protocol, DiSEqC 1.2 protocol
3.Satellite parameters editable
|
Model Number |
968G |
|
Screen Size |
3.5 Inch TFT LCD Panel with resolution of 320x 240 |
|
Resolution |
320x240 |
|
Menu Languages |
Chinese/English /French /Arabic/Turkey/Russian. |
|
Satellite signal video decoding |
DVB-S |
|
Satellite signal display test |
ABS-S, CBS-2, DVB-S2 signal alarm and signal display. |
|
Input Level |
-65~-25dBm |
|
Input Impedance |
75 ohm |
|
Threshold |
4.5dB |
|
Input frequency |
950~2150MHz |
|
LNB Power supply |
13/18V, max400mA |
|
DiSEqC |
1.2 edition and1.0 edition |
|
LNB Switch control |
22kHz |
|
Demodulation chip |
QPSK(SCPC and MCPC compatible) |
|
Symbol rate |
2Mbps~45Mbps |
|
System processor |
32bit processor(200MHz) |
|
SDRAM |
16Mbyte |
|
Flash |
4Mbyte |
|
Video |
MPEG-2 |
|
Main Level. Rate |
Up to15Mbits/s |
|
Image analysis |
720x576, 720x480 |
|
Voice patterns |
Single sound channel |
|
Sampling rate |
32, 44.1 and 48kHz |
|
Color System |
PAL/NTSC |
|
Lithium battery |
DC 11.1V 2200mAh(built-in). |
|
Input Voltage |
DC13.5V1.5A |
|
Output Voltage |
DC12V. |
|
Dimension |
170*110*41mm |
|
Weight |
440g (including battery pack) |
|
Accessories : |
13.5V DC Adaptor x 1 ,Bag x 1,DC to DC x1 LNB fast connection(F fast line)x 1,Car Power x1 BNC to RCA (optional), LNB(F Quick plug, optional) |
|
Packing Details |
10PCS/CTN , N.W./G.W.:9/10KGS Carton Size:43x37x25cm |
