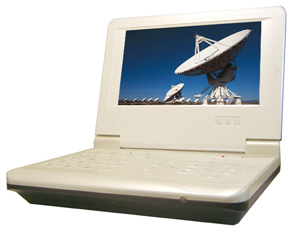

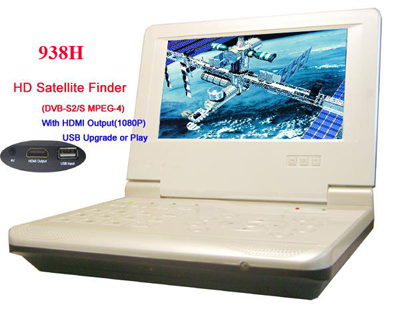

7 Inch DVB-S2 HD Satellite Finder with HDMI Output
Main Features:
-
support
DVB-S/S2/MPEG-4 signal, and free channel analysis, it also can be easily find
DVB-S and DVB-S2 signal source play, and support USB.
-
Fully
compatible with DVB-S, DVB-S2, MPEG-2, MPEG-4(H. 2.64/AVC)for all digital
satellite signal
-
Top
quality audio, video player with HDMI output.
-
Built-in multilanguage menu: English; Cesky; Dansk; Fancais; Deutsch; Italiano; Persian; Arabe; Israel;
Specifications :
|
Model Number |
938H |
|
Screen Size |
7 Inch (15:9 Display ) with resolution of 800x 480 |
|
Menu Languages |
English; Cesky; Dansk; Fancais; Deutsch; Italiano; Persian; Arabe; Israel; |
|
Input Signal |
DVB-S/S2 |
|
Frequency range |
950MHz-2150MHz (DVB-S/S2) |
|
Input Frequency |
920~2150MHz |
|
Input Level |
-80~-20dBm |
|
LNB Input |
F type |
|
Input impedance |
75 Ω (F) |
|
LNB Power Supply |
13/18V, max400mA (DVB-S/S2) |
|
Minimum electric level |
About 35dBuV (noise) |
|
Maximum electric level |
About 90dB |
|
LNB Switch control |
22kHz(Turn on/off/auto) |
|
DiSEqC switch |
1.0, 1.1, 1.2 |
|
USALS Symbol rate |
2Mbps~45Mbps. |
|
Voice patterns |
Dual channel |
|
Sampling rate |
32, 44.1 and 48kHz |
|
Demodulation chip |
QPSK(SCPC and MCPC compatible) |
|
Satellite signal video decoding |
DVB-S/2 CBS-2, MPEG-4 signal alarm and signal display |
|
HDMI Output |
576I, 576P, 720P, 1080I, 1080P HD Signal Output |
|
LithiumBattery |
8400mAh*3.7V(built-in) |
|
Input Voltage |
DC13.5V1.5A |
|
Unit Dimension |
205x 165x45mm |
|
Unit Weight |
880g (including battery pack) |
|
Standard Accessories |
13.5V 1.5ADC adapter x 1 |
|
|
Remote Controller x 1 |
|
|
Bag x 1 |
|
|
AV Line x 1 |
|
|
LNB fast connection(F fast line) x 1 |
|
|
HDMI Line x 1 ,Car Power Adaptor x1 |
|
Packing Details |
10PCS /CTN N.W./G.W.:15/16KGS
Carton Size: 68x36x27cm |
