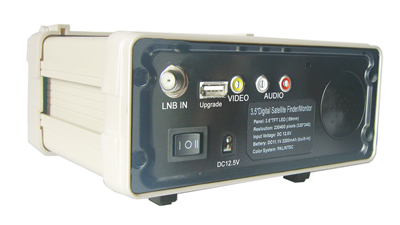

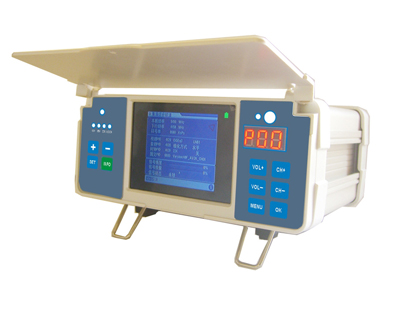

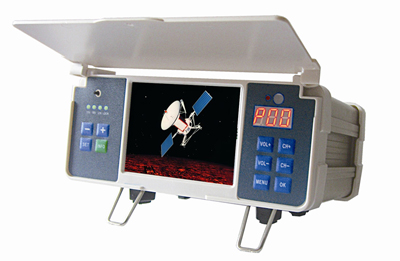

3.5 Inch Portable Digital Satellite Finder
Main Features:
- 3.5-inch LCD Display
- AV input & output function
- both in English, French, Russian, Arab, Persian, Portugal, and Turkey etc.
- Built-In Rechargeable 2200 mAh Li-Ion battery, continuously work for 3-4 hours
- signal quality displayed by the LCD and digital Dual Screen;
- Unique Satellite guidance function.
- 18V/13V/22K light indicator/signal lock light on panel.
- Set up alarm sound function: if LNB circuit short, it will raise the alarm sound.
- Aluminium metal with sunvisor, view more clear image by opening sunvisor
- small size, light weight and easily carry.
|
Model Number |
906A |
|
Screen Size |
3.5 Inch TFT LCD Panel with resolution of 320x240 |
|
LNB Input |
F type female head |
|
Input impedance |
75 Ω (F) |
|
Input Frequency |
950MHz-2150MHz |
|
Input Signal Level |
-65dBm~-25dBm |
|
LNB Supply |
13/18V,max400mA |
|
LNB ON-OFF Control |
22KHz |
|
DiSEqC |
1.2 versions |
|
Threshold |
4.1dB |
|
Symbol Rate |
2Mbps~45Mbps |
|
Demodulation |
QPSK |
|
SCPC/MCPC compatible |
Yes |
|
Processor |
32bit processor(200MHz) |
|
SDRAM |
16Mbyte |
|
Flash |
4Mbyte |
|
Video |
MPEG-2 Main Level |
|
Main Level Rate |
Up to15Mbits/s |
|
Image analysis |
720x576, 720x480 |
|
Voice patterns |
Single Sound Channel |
|
Sampling Rate |
32, 44.1 and 48kHz |
|
Lithium battery |
DC 11.1V 2200mAh(built-in) |
|
Input Voltage |
DC12.5V1.2A |
|
Dimension |
165x 125x80mm |
|
Weight |
830g (including battery pack) |
|

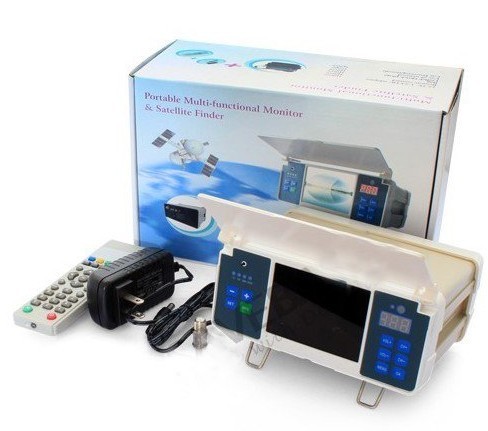

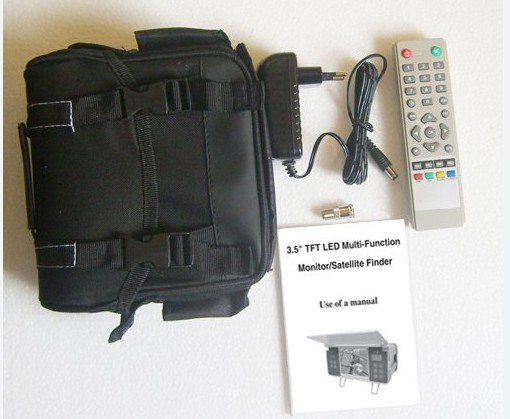

Accessories |
Home power adaptor x 1 |
|
|
Remote Control x 1 |
|
|
Carry bag x 1 |
|
|
LNB (F fast line) x 1 ,Car Power Adaptor x1 |
|
|
USB cable x 1 (optional) |
|
Packing Details |
10PCS/CTN , N.W./G.W.:16.5/17.5KGS Carton Size:63x41x33cm |
