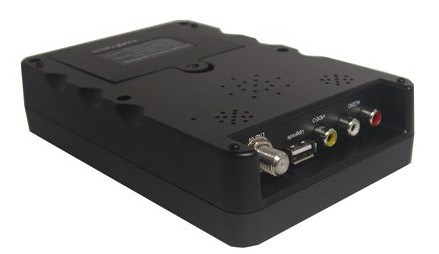

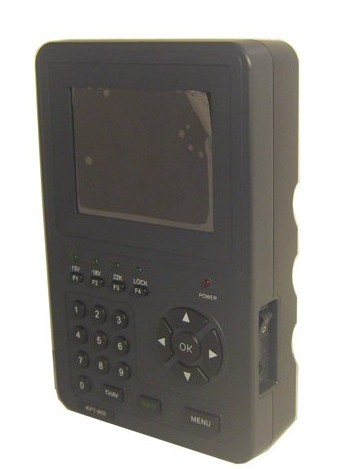

3.5 Inch Handheld Digital Satellite Finder with LCD Monitor
Advantages:
1. LNB short-circuit alarm protection system.
2. 4 hours satellite searching time,10hours working time under AV condition.
3. USB port for software upgrades.

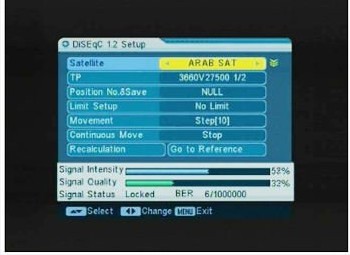

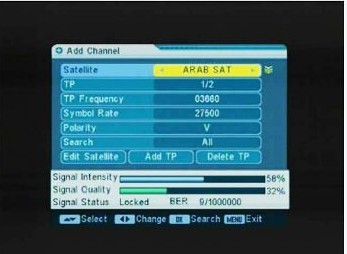

4. Shows signal strength and quality,shows channel picture.
5. Completely programmable by the user.
6. 13V/18V/22K Signal Lock Light.
7. Calculates Azimuth and Elevation.
Specifications :
|
Model Number |
966 |
|
Screen Size |
3.5 “ TFT LCD Display with resolution of 320x 240 |
|
LNB Input |
LNB |
|
LNB Input |
F type female head |
|
Input impedance |
75 Ω (F) |
|
Input Frequency |
950MHz-2150MHz |
|
Input Signal Level |
-65dBm~-25dBm |
|
LNB Supply |
13/18V,max400mA |
|
LNB ON-OFF Control |
22KHz |
|
DiSEqC |
1.2 versions |
|
Threshold |
4.1dB |
|
Symbol Rate |
2Mbps~45Mbps |
|
Demodulation |
QPSK |
|
SCPC/MCPC compatible |
Yes |
|
Processor |
32bit processor(200MHz) |
|
SDRAM |
16Mbyte |
|
Flash |
4Mbyte |
|
Video |
MPEG-2 Main Level |
|
Main Level Rate |
Up to15Mbits/s |
|
Image analysis |
720x576, 720x480 |
|
Audio Mode |
mono channel |
|
Sampling Rate |
32,44.1 and 48KHz |
|
lithium battery |
DC 11.1V 2200mAh(Build-in) |
|
input voltage |
DC12.5V 1.2A |
|
Dimension |
165*125*80mm |
|
Weight |
830g(including battery) |
|
Accessories |
Home power adaptor x1 |
|
|
Carry bag x1 ,Instruction Manual x1 |
|
|
LNB(F fast line)x1 |
|
|
Car Power x 1 |
|
|
USB Cable x 1 (optional) |
|
Packing Details |
10PCS /CTN , N.W./G.W.: 9/10KG Carton Size:43x37x25cm |
