7 Inch Portable Digital Satellite Finder & Monitor
Classification: 7 Inch Published: 2013-08-23 17:25:25
  • Price : Negotiable
  • Order

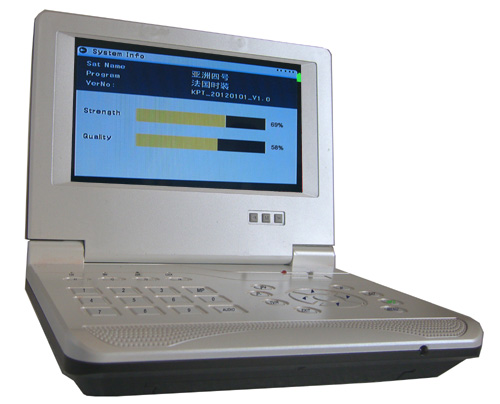

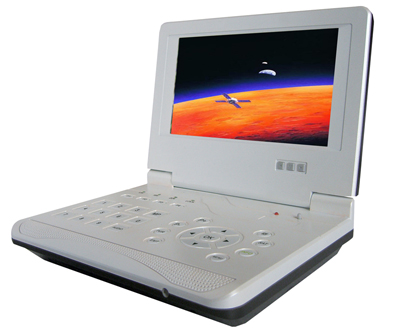

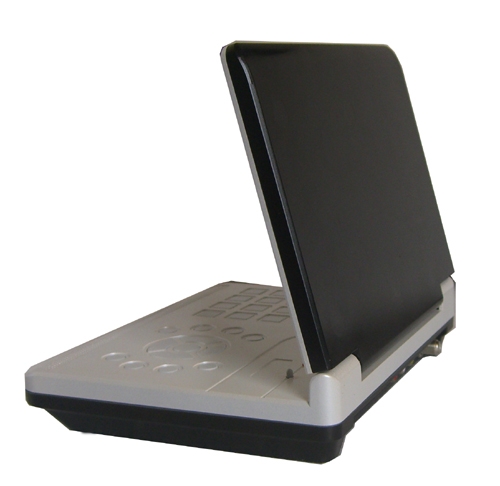

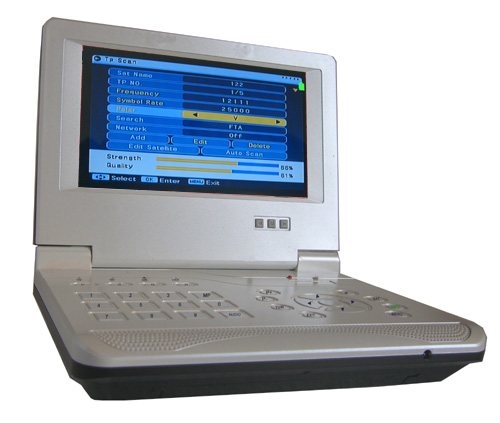

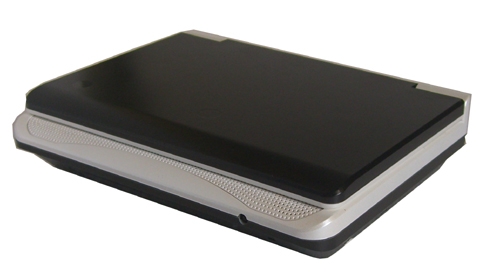

7 Inch Portable Digital Satellite Finder & Monitor



Advanced Features:

  1. Satellite Signal Display Test: ABS-S,CBS-2,DVB-S2 Signal Alarm and signal display .
  2. Satellite Signal video decoding: DVB-S ; Video :MPEG-2 Main Level
  3.  Support AV Audio/ Video input and output ,test camera video function.
  4. New INFO Function, INFO article shows of signal shape, with enlarge images.
  5.  Signal Lock Lamp, 13V/18V Output indicator and the 22 V Switch sate indicator.
  6. Built-in  LNB feeder short circuit protection.
  7. USB Upgrade, direct USB docking RS232
  8. Direct battery power show on the screen.
  9.  Charging indicator light show.


Specifications :


Model Number

928G

Screen Size

7 Inch TFT LCD Panel with resolution of 800x480

LNB Input

F type male head.

Input impedance

75 Ω (F)

Frequency Range

950MHz-2150MHz

Signal Level

-65dBm~-25dBm

LNB Power Supply

13/18V,max400mA

LNB Switch Control

22KHz

DiSEqC

1.0 & 1.2 edition

Threshold

4.1dB;

Demodulation chip

QPSK(SCPC and MCPC compatible)

Symbol Rate

2Mbps~45Mbps

System Processor

32bit processor(200MHz)

SDRAM

16Mbyte

Flash

8M byte

Video

MPEG-2

Main Level Rate

up to 15M bits/s

Image analysis

720x576,720x480

Voice Pattern

Single sound  channel

Sampling Rate

32,44.1 and 48KHz

Lithium battery

7200mAh(3600x2)

Input Voltage

DC13.5V ,  1.5A

Unit Dimension

205x165x45mm

Unit Weight

830g (including battery pack)

Accessories

Home power adaptor x1



Remote Controller x 1



Carry Bag x 1



 F Fast Line x 1



Car power x 1

 Packing Details

10PCS/CTN, N.W./G.W.:15/16KGS

Carton Size:68x36x27cm
