5 Inch TFT LCD SKD Module with AV,VGA ,HDMI Input
Classification: 5 Inch Published: 2013-08-23 21:33:12
- Price : Negotiable
- Order

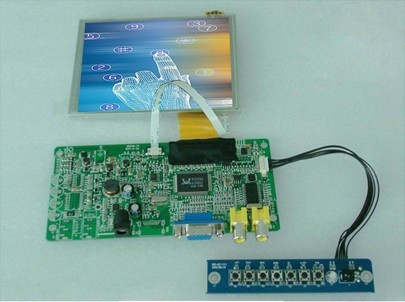

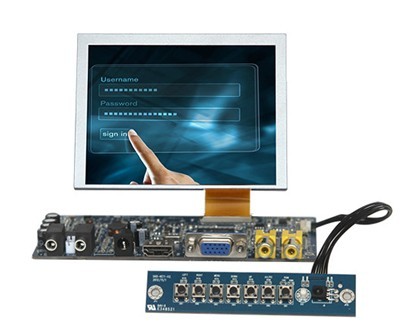

5 Inch TFT LCD SKD Module with AV,VGA ,HDMI Input
Applications:
- Mainly used in closed-circuit surveillance Systems
- Car Video ,PC Operating System
- Vehicle Navigation System supporting display.
- Industrial Automation System
- Medical Machine Equipment
- POS, ATM, Kiosks etc.
Specifications :
| Model Number | SKD5VAHT-3 (SKD5VAH-3 without touchscreen) |

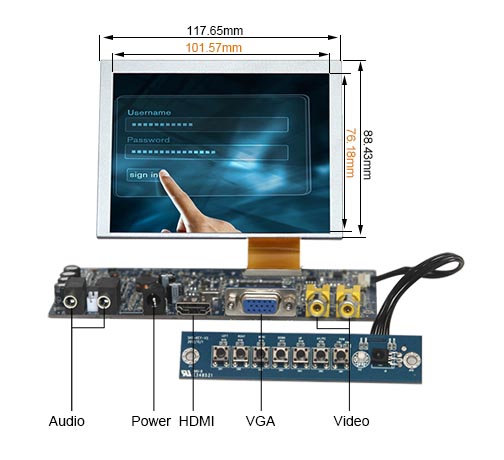

| Screen Size | 5 inch with digital panel , 117.65(W)X88.43(H)X5.7(H) mm |
| Resolution | 640x480, support up to 1920x1440 |
| Backlight | LED |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 500:1 |
| Brightness | 200cd/m2 |
| Touch Screen | 4 Wire Resistive Touch |
| Touch Interface | USB |
| Viewing Angle |
70°/70°(L/R), 50°/70°(U/D) |

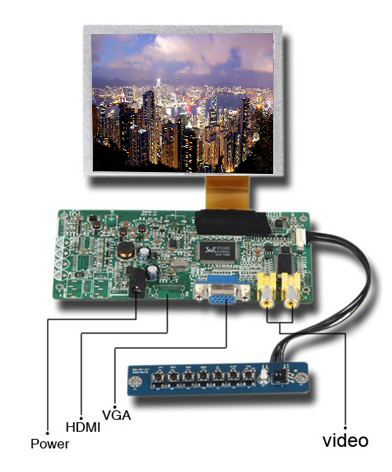

| Input Signals | VGA, AV1,AV2,HDMI,Audio |
| Output Signals | Audio |
| Input Voltage |
DC12V±15% |
| Power Consumption |
≦6W |
| WorkingTemperature |
-20℃～60℃ |
| StorageTemperature |
-30℃～70℃ |
| PCB Size | 143.5(L)x70.4(W)mm |
| Unit Weight | 280g |
| Standard Accessories | Home AC Adaptor x1, VGA Cable x1, Remote Controller x1, Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch) |
| Packing Details | 10PCS /CTN , Carton Size: 47.7x43.2x33.2cm |
|
|
N.W./G.W.:15/16KGS |
