8 Inch Touchscreen LCD SKD Module
Classification: 8 Inch Published: 2013-08-23 22:13:49
  • Price : Negotiable
  • Order

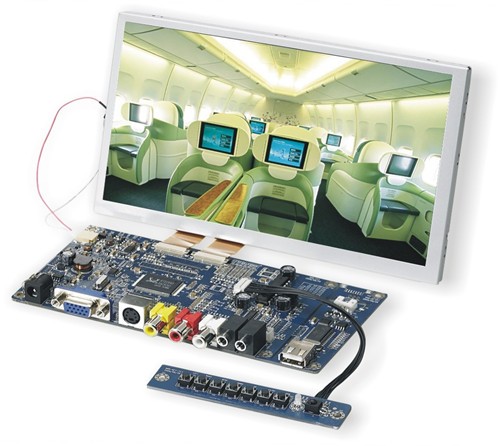

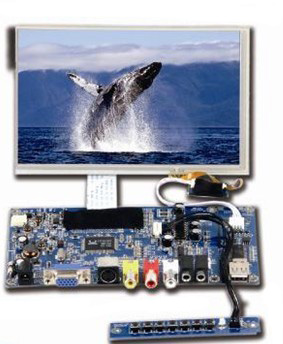

8 Inch Touchscreen LCD SKD Module



Applications:



  •  Mainly used in  closed-circuit surveillance Systems
  • Car Video ,PC Operating System
  •  Vehicle Navigation System supporting display.
  •  Industrial Automation System
  • Medical Machine Equipment
  • POS, ATM, Kiosks etc.




Specifications :


Model Number

SKD8VAT-9 (SKD8VA-9 without touchscreen)

Screen Size

8 inch with digital panel

Resolution

800x480, support up to 1920x1440

Backlight

LED

Aspect Ratio

16:9

Contrast Ratio

300:1

Brightness

250cd/m2

Touch Screen

 4 Wire Resistive Touch

Touch Interface

USB

Viewing Angle

70°/70°(L/R), 50°/60°(U/D)

Input Signals

VGA, Video ,S-Video ,Audio

Output Signals

Audio

Input Voltage

DC12V±15%

Power Consumption

6W

WorkingTemperature

-2060

Storage Temperature

-3070

Unit Size

192.8(L)x116.9(W)x3.4(H)mm

Unit Weight

530g

StandardAccessories

Home AC Adaptor x1, VGA Cable x1, USB Cable x1, Remote Controller x1, Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch)

Packing Details

10PCS /CTN ,  Carton Size: 48x44x36cm



N.W./G.W.:18/19KGS
