- Price : Negotiable
- Order

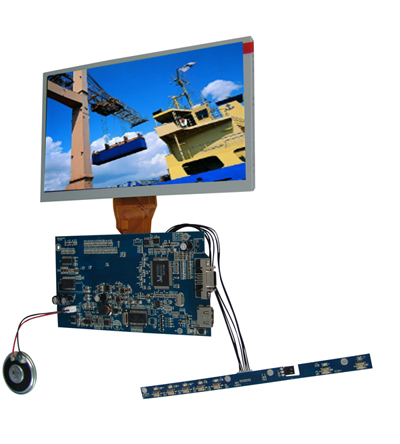

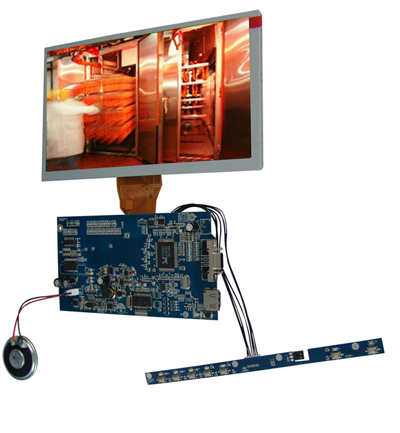

HDMI Input 16:9 8 Inch Touch LCD SKD Module
Applications:
- Mainly used in closed-circuit surveillance Systems
- Car Video ,PC Operating System
- Vehicle Navigation System supporting display.
- Industrial Automation System
- Medical Machine Equipment
- POS, ATM, Kiosks etc.
Specifications :
|
Model Number |
SKD819VAHT-9 (SKD819VAH-9 without touchscreen) |
|
Screen Size |
8 inch with digital panel |
|
Resolution |
800x480, support up to 1920x1440 |
|
Backlight |
LED |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
300:1 |
|
Brightness |
250cd/m2, 450cd/m2 for optional |
|
Touch Screen |
4 Wire Resistive Touch |
|
Touch Interface |
USB |
|
Viewing Angle |
70°/70°(L/R), 50°/60°(U/D) |
|
Input Signals |
VGA, AV1,AV2,HDMI,Audio |
|
Output Signals |
Audio |
|
Input Voltage |
DC12V±15% |
|
Power Consumption |
≦6W |
|
WorkingTemperature |
-20℃～60℃ |
|
Storage Temperature |
-30℃～70℃ |
|
PCB Size |
143.6(L)x79.6W)mm |
|
Unit Weight |
530g |
|

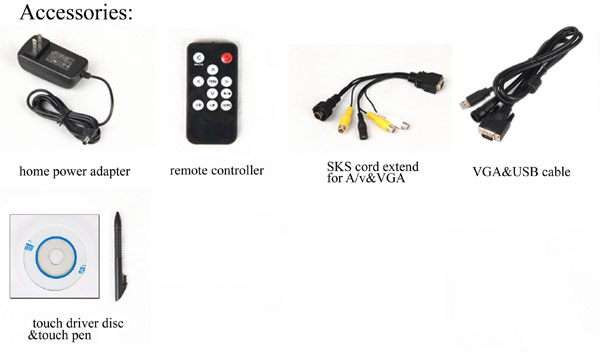

StandardAccessories |
Home AC Adaptor x1, VGA Cable x1, SKS Cable x1, Remote Controller x1, Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch) |
|
Packing Details |
10PCS /CTN , Carton Size: 48x44x36cm |
|
|
N.W./G.W.:18/19KGS |
