IPS Panel 8 Inch LCD Monitor without Frame
Classification: 8 Inch Published: 2013-08-23 22:47:20
  • Price : Negotiable
  • Order

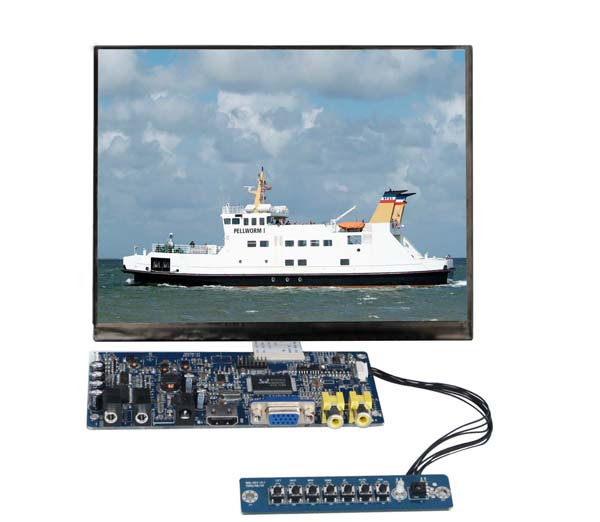

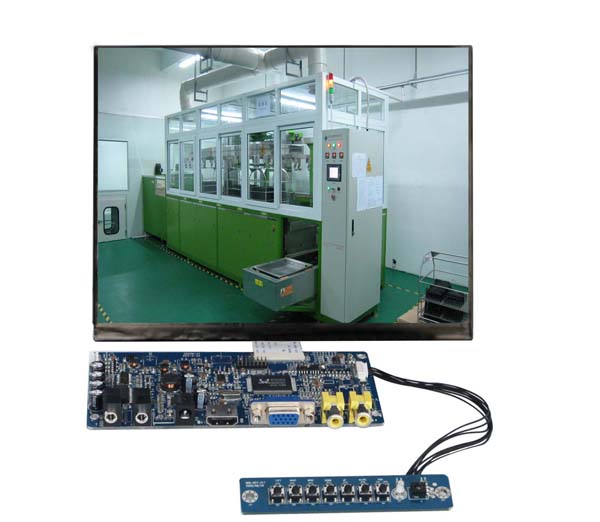

IPS Panel 8 Inch LCD Monitor without Frame



Applications:


  •  Mainly used in  closed-circuit surveillance Systems
  • Car Video ,PC Operating System
  •  Vehicle Navigation System supporting display.
  •  Industrial Automation System
  • Medical Machine Equipment
  • POS, ATM, Kiosks etc.



Specifications :


Model Number

SKD823VAT-3 (SKD823VA-3 without touchscreen)

Screen Size

8 inch with IPS Panel

Resolution

1024x768, support up to 1920x1440

Backlight

LED

Aspect Ratio

4:3

Contrast Ratio

800:1

Brightness

350cd/m2

Touch Screen

 4 Wire Resistive Touch

TouchInterface

USB

Viewing Angle

85°/85°(L/R), 85°/85°(U/D)

Input Signals

VGA, AV1,AV2,HDMI,Audio

Output Signals

Audio(earphone)

Input Voltage

DC12V±15%

PowerConsumption

6W

WorkingTemperature

-2060

Storage Temperature

-3070

Unit    Size

174L × 136W × 2.6H(mm)

Unit Weight

530g

StandardAccessories

Home AC Adaptor x1, VGA Cable x1, Remote Controller x1, Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch)

Packing Details

10PCS /CTN ,  Carton Size: 48x44x36cm



N.W./G.W.:18/19KGS
