- Price : Negotiable
- Order

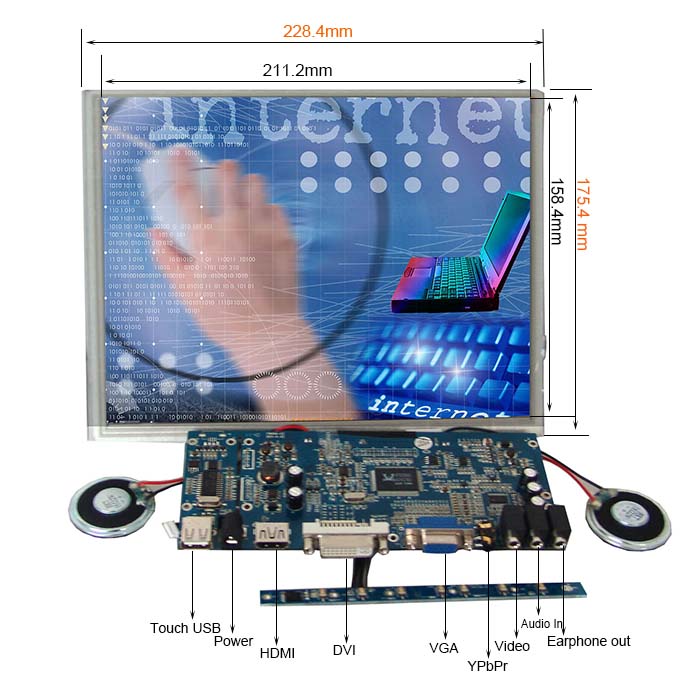

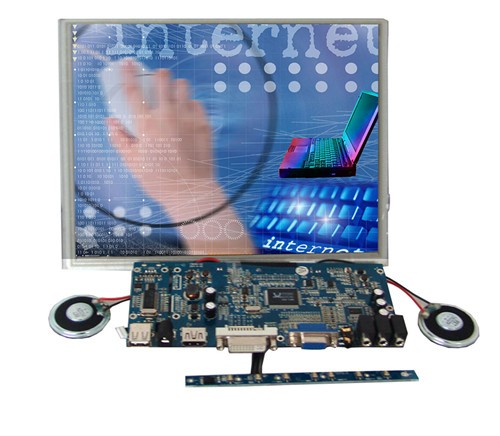

4:3 10.4 Inch Touch LCD SKD Module with
VGA ,HDMI,DVI,YPbPr Input
Applications:
- Mainly used in closed-circuit surveillance Systems
- Car Video ,PC Operating System
- Vehicle Navigation System supporting display.
- Industrial Automation System
- Medical Machine Equipment
- POS, ATM, Kiosks etc.
Specifications :
|
Model Number |
SKD1042VAT-3 (SKD1042VA-3 without touchscreen) |
|
Screen Size |
10.4 inch with digital panel ,228.4 (H) x 175.4 (V) x 5.9 (D)mm |
|
Resolution |
800x600 support up to 1920x1440 |
|
Backlight |
LED |
|
Aspect Ratio |
4:3 |
|
Contrast Ratio |
500:1 |
|
Brightness |
250cd/m2 |
|
Touch Screen |
4 Wire Resistive Touch |
|
Touch Interface |
USB |
|
Viewing Angle |
70°/70°(L/R), 50°/60°(U/D) |
|
Input Signals |
VGA,VIDEO1,VIDEO2,AUDIO,YPbPr,HDMI, DVI |
|
Output Signals |
No |
|
Input Voltage |
DC12V±15% |
|
Power Consumption |
≦7W |
|
WorkingTemperature |
-20℃～60℃ |
|
Storage Temperature |
-30℃～70℃ |
|
PCB Size |
174(L)x72(W)mm |
|
Unit Weight |
650g |
|
StandardAccessories |
Home AC Adaptor x1, VGA Cable x1, Remote Controller x1, AV Cable x1,USB Cable x1, Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch) |
|
PackingDetails |
10PCS /CTN , Carton Size: 48x44x36cm |
|
|
N.W./G.W.:18/19KGS |
