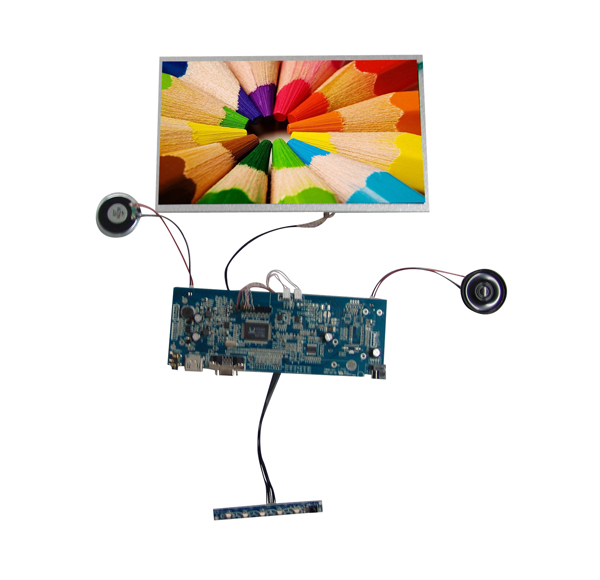

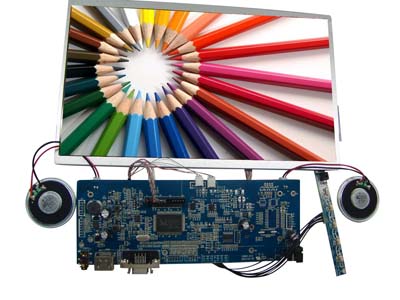

10.1 Inch TFT LCD SKD Module with
AV,VGA ,HDMI ,YPbPr Input
Applications:
- Mainly used in closed-circuit surveillance Systems
- Car Video ,PC Operating System
- Vehicle Navigation System supporting display.
- Industrial Automation System
- Medical Machine Equipment
- POS, ATM, Kiosks etc.
Specifications:
|
Model Number |
SKD10.1VAT-9 (SKD10.1VA-9without touchscreen) |
|
Screen Size |
10.1 inch with digital panel |
|
Resolution |
1024X768(1366x768 optional), support up to 1920x1440 |
|
Backlight |
LED |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
500:1 |
|
Brightness |
250cd/m2 |
|
Touch Screen |
4 Wire Resistive Touch |
|
Touch Interface |
USB |
|
Viewing Angle |
70°/70°(L/R), 40°/50°(U/D) |
|
Input Signals |
VGA,VIDEO1,VIDEO2,AUDIO,YPbPr,HDMI |
|
Output Signals |
No |
|
Input Voltage |
DC9-15v |
|
Power Consumption |
≦6W |
|
WorkingTemperature |
-20℃～50℃ |
|
Storage Temperature |
-30℃～65℃ |
|
Unit Size |
|
|
Unit Weight |
750g |
|
StandardAccessories |
Home AC Adaptor x1, VGA & USB Cable x1, Remote Controller x1, SKS Cable x1,Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch) |
|
PackingDetails |
10PCS /CTN , Carton Size: 48x44x36cm |
|
|
N.W./G.W.:18/19KGS |
