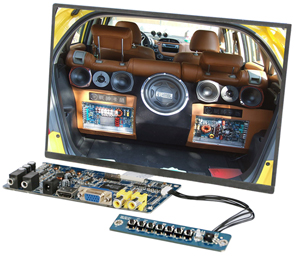

IPS Panel 10.1 Inch LCD SKD Module with HDMI Input
Applications:
- Mainly used in closed-circuit surveillance Systems
- Car Video ,PC Operating System
- Vehicle Navigation System supporting display.
- Industrial Automation System
- Medical Machine Equipment
- POS, ATM, Kiosks etc.
Specifications :
|
Model Number |
SKD101VAT-9 (SKD101VA-9 without touchscreen) |
|
Screen Size |
10.1 inch with IPS panel |
|
Resolution |
1280X 800, support up to 1920x1440 |
|
Backlight |
LED |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
800:1 |
|
Brightness |
350cd/m2 |
|
Touch Screen |
4 Wire Resistive Touch |
|
Touch Interface |
USB |
|
Viewing Angle |
85°/85°(L/R), 85°/85°(U/D) |
|
Input Signals |
VGA,VIDEO1,VIDEO2,AUDIO,HDMI |
|
Output Signals |
Audio(earphone) |
|
Input Voltage |
DC12V±15% |
|
Power Consumption |
≦6W |
|
WorkingTemperature |
-20℃～60℃ |
|
Storage Temperature |
-30℃～70℃ |
|

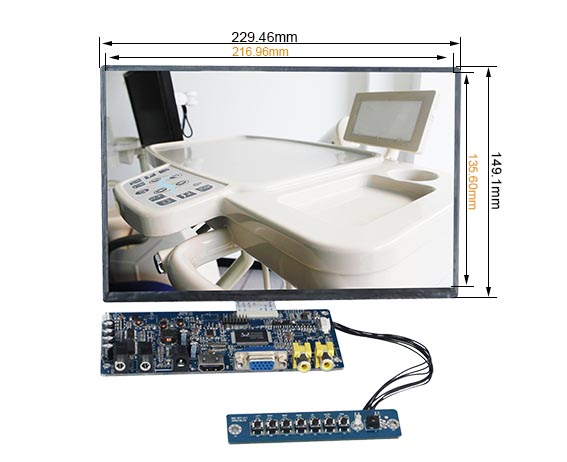

Unit Size |
229.5(L)x149(W)x2.4(H)mm
145(L)X70(W)mm(PCB size) |
|
Unit Weight |
1400g |
|
StandardAccessories |
Home AC Adaptor x1, VGA Cable x1, Remote Controller x1, Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch) |
|
PackingDetails |
10PCS /CTN , Carton Size: 48x44x36cm |
|
|
N.W./G.W.:18/19KGS |
