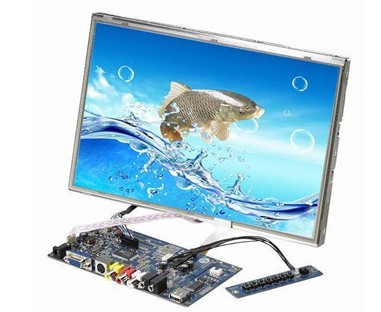

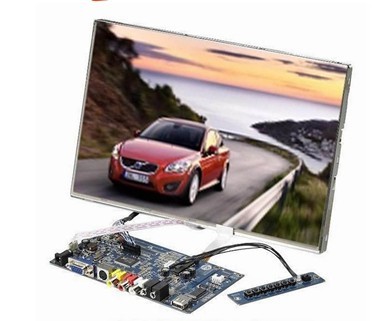

12.1 Inch TFT LCD SKD Module for Industrial Application
Applications :
- Mainly used in closed-circuit surveillance Systems
- Car Video ,PC Operating System
- Vehicle Navigation System supporting display.
- Industrial Automation System
- Medical Machine Equipment
- POS, ATM, Kiosks etc.
|
Model Number |
SKD12.1VAT-9 (SKD12.1VA-9 without touchscreen) |
|
Screen Size |
12.1 inch with digital panel |
|
Resolution |
1280X800, support up to 1920x1440 |
|
Backlight |
CCFL |
|
Aspect Ratio |
16:9 |
|
Contrast Ratio |
350:1 |
|
Brightness |
450cd/m2 |
|
Touch Screen |
4 Wire Resistive Touch |
|
Touch Interface |
USB |
|
Viewing Angle |
65°/65°(L/R) , 50°/65°(U/D) |
|
Input Signals |
VGA,Video,Audio,S-Video |
|
Output Signals |
Audio(earphone) |
|
Input Voltage |
DC12V±15% |
|
Power Consumption |
≦23W |
|
WorkingTemperature |
-20℃～60℃ |
|
Storage Temperature |
-30℃～70℃ |
|
Unit Size |
278.34L×183.6W×13.05H(mm) |
|
Unit Weight |
1500g |
|
StandardAccessories |
Home AC Adaptor x1, VGA Cable x1, Remote Controller x1, USB Cable x1, Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch) |
|
PackingDetails |
6 PCS /CTN , Carton Size: 48x44x36cm |
|
|
N.W./G.W.:18/19KGS |
