15 Inch Industrial TFT LCD SKD Module
Classification: 15 Inch Published: 2013-08-24 16:47:45
  • Price : Negotiable
  • Order

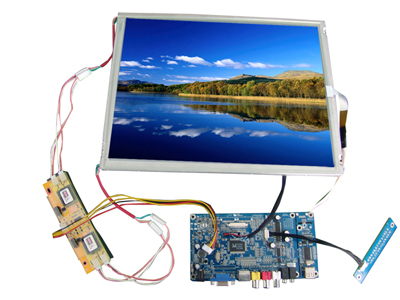

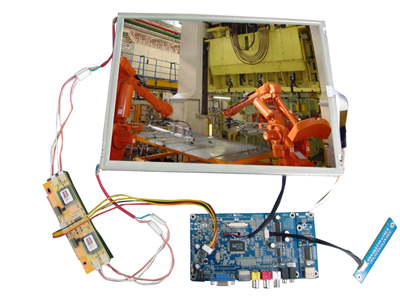

15 Inch Industrial TFT LCD SKD Module


Applications:


  •  Mainly used in  closed-circuit surveillance Systems
  • Car Video ,PC Operating System
  •  Vehicle Navigation System supporting display.
  •  Industrial Automation System
  • Medical Machine Equipment
  • POS, ATM, Kiosks etc.


Specifications :




Model Number

SKD15VAT-3 (SKD15VA-3 without touchscreen)

Screen Size

15 inch with digital panel

Resolution

1024X738, support up to 1920x1440

Backlight

LED

Aspect Ratio

4:3

Contrast Ratio

400:1

Brightness

400cd/m2

Touch Screen

 4 Wire Resistive Touch

Touch Interface

USB

Input Signals

S-VIDEO  / VIDEO  /AUDIO/ VGA

Output Signals

Audio

Input Voltage

DC12V±15%

Power Consumption

36W

WorkingTemperature

-1055

Response Time

Rising :5 ms Falling: 20ms

Unit Size

160.1x85.9x1.6mm

Unit Weight

280g

StandardAccessories

Home AC Adaptor x1, VGA Cable x1,USB Cable x1, Remote Controller x1, Touch Pen x1 (for Touch), Touch Driver Disc x1( for touch)

Packing Details

10PCS /CTN ,  Carton Size: 48x 44x36cm



N.W./G.W.:18/19KGS
