Model Number

619AHT, 619AHT-450

Screen Size

7 Inch with digital Panel

Resolution

800x480(support up to 1920x 1440)

Backlight

LED

Contrast Ratio

500:1

Aspect Ratio

16:9

Brightness

300cd/m², 450cd/m² for 619AHT-450

Viewing Angle

70°/70°(L/R) ,50°/70(°U/D)

Input Voltage

DC12V±15%

Input Signal

VGA,Video1,Video2,Audio,HDMI (DVI Input for Optional)

HDMI Format

480i,480p,576i,576p,720p,1080i,1080p(50/60Hz)

Touch screen

4 Wire Resistive Touch ( 5 Wire resistive optional)

Touch Interface

USB for standard (RS 232 for optional)

Mounting Process

 Stand Bracket ,  1/4-20 Hole in the bottom

Power Consumption

≦6W

Working Temperature

-20℃～60℃

Storage Temperature

-30℃～70℃

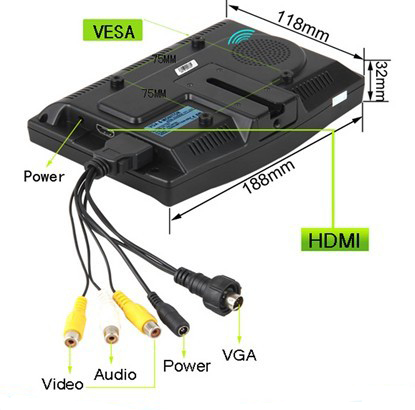

Unit Size

184L x 126W x  32H(mm)

Unit Weight

495g

OS Support for Touch

MAC,Vista,Linux ,Win CE, MS-DOS, Window XP, Window NT4,Window 9X/ME

StandardAccessories

SKS Cord x 1,   VGA+USB Cable X1 , Bracket x 1,  Instruction Manual x 1

Remote Controller x 1 , AC Adaptor x 1,  Car Cigarette Lighter x 1

Touch Pen x 1 , Touch Driver Disc x 1 (for touch )

Packing Details

10PCS/CTN

N.W./G.W.: 19/20 KGS

Carton Size: 48x 44x36cm
