Model Number

121-3AHT

Screen Size

12.1 Inch with digital Panel

Resolution

800x600(support up to 1920x 1440)

Backlight

LED

Contrast Ratio

900:1

Aspect Ratio

4:3

Brightness

330cd/m²

Viewing Angle

70°/70°(L/R) ,50°/80(°U/D

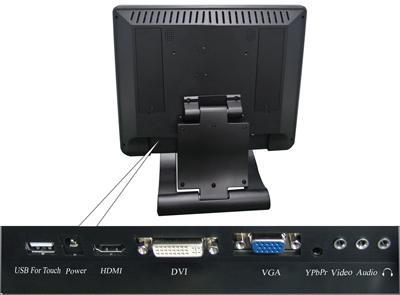

Input Signal

VGA,VIDEO1,VIDEO2,AUDIO,HDMI

Touch screen

4 Wire Resistive Touch ( 5 Wire resistive optional)

Touch Interface

USB for standard (RS 232 for optional)

Mounting Process

 Stand Bracket ,  1/4-20 Hole in the bottom

Power Consumption

≦12W

Storage Temperature

-30℃～65℃

Unit Weight

850g
