Model Number

819A

Screen Size

8 Inch

Resolution

800x480

Backlight

LED

Aspect Ratio

16:9

Horizontal FrequencyRange

 30～ 60 kHz

Field frequency range

50-75hz

Contrast Ratio

500:1

Brightness

450cd/m²

Response Time

15ms

Viewing Angle

70°/70°(L/R) ,50°/70°（U/D)

Power Input

DC 6-18V

Powe Consumption

≦ 7W

Working Temperature

 -20℃～60℃

Storage Temperature

-30℃～70℃

Unit Size

209（L）×147（W）× 35（H）mm

Unit Weight

511g

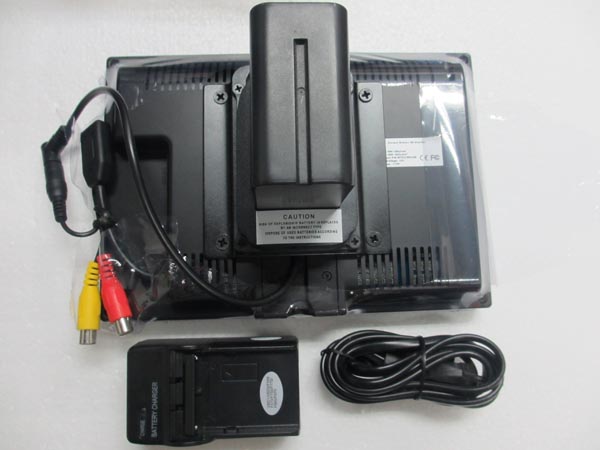

Accessories

 Sun Cover x1, AC Cable x1, Instruction Manual x1

Packing Details

10PCS , carton Size : 48x 27.4x50cm

N.W./G.W.:10/11KGS
