- Price : Negotiable
- Order

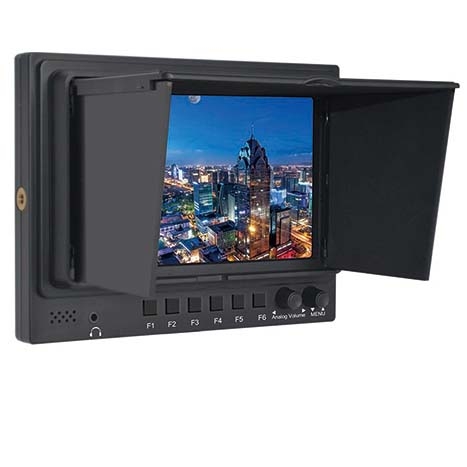

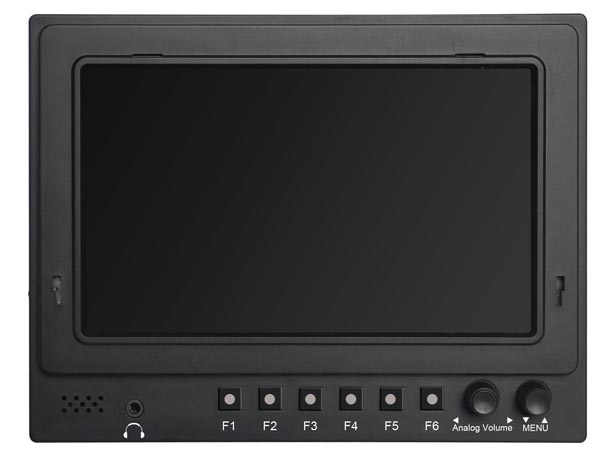

3G-SDI Professional 7 Inch HD Camera Monitor

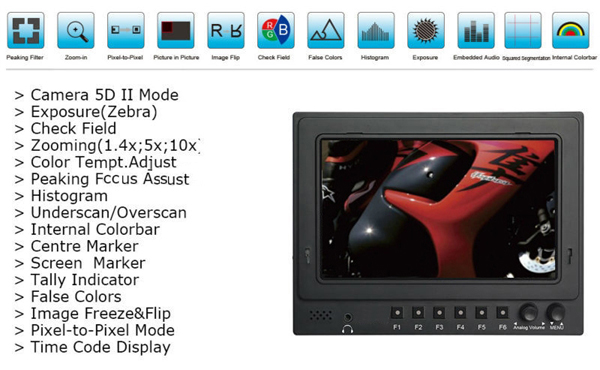

Advanced Features:
- 5D Ⅱ Camera Mode(DSLR Ratio Adjustment)
- Peaking Filter in Red/Blue/yellow(Focus Assist)

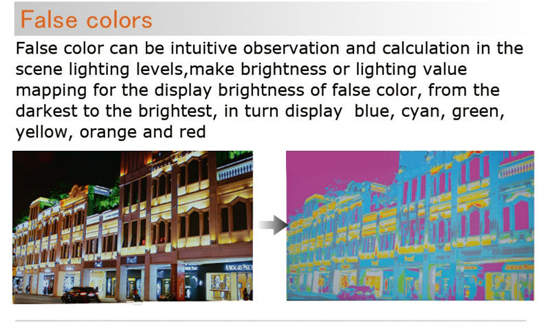

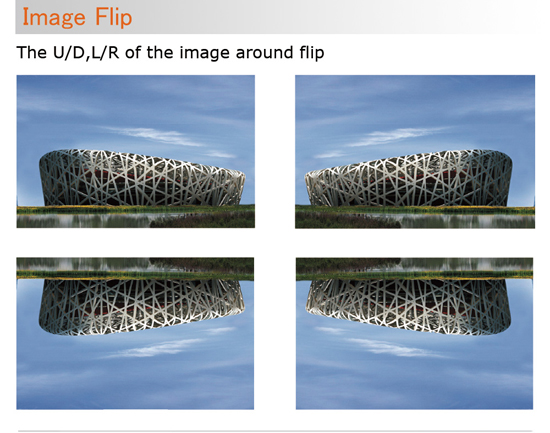

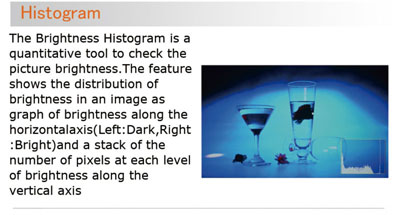

- False Colors,Exposure,Histogram,Image Flip

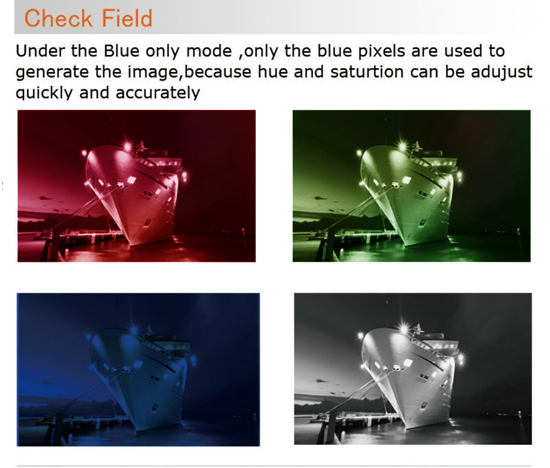

- Check Field (Red,Green,Blue,Mono,)
- Underscan/Overscan

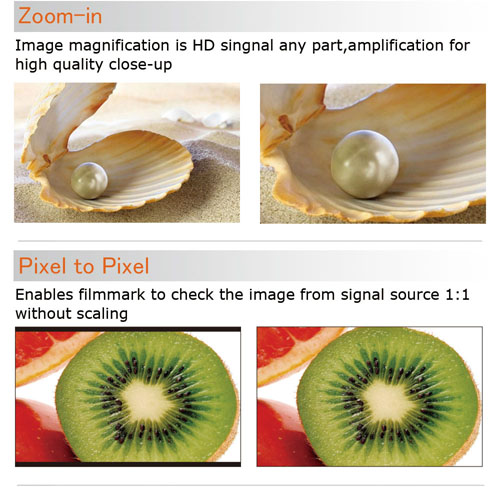

- Pixel-to-Pixel Mode
- Zooming(1.4x ; 5x ; 10x )
- Internal Color bar,Time Code Display
- Color Tempt.Adjust

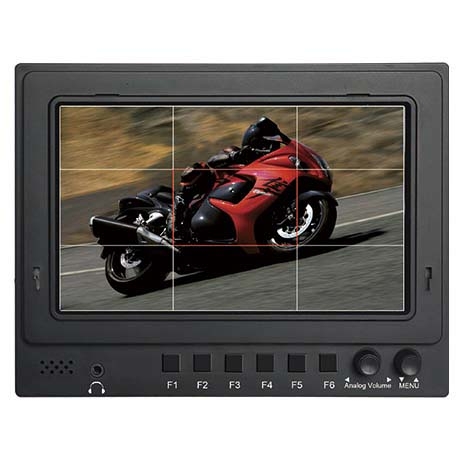

- Center Marker/Screen Marker（2.35:1,80%, 85%, 90%, 93%, 96%）
-

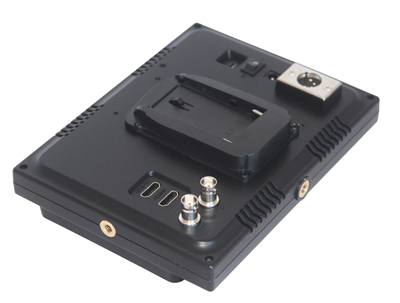

Variety
of Optional User-Replaceable Battery Adapters available: Sony
NP-F970, Canon LP-E6, Panasonic D28S,Sony V-Mount battery plate,Panasonic Anton
Bauer battery plate
Specifications :
|
Model Number |
768S/O/P |
|
Screen Size |
7 Inch |
|
Resolution |
1024x600 |
|
Backlight |
LED |
|
Aspect Ratio |
16:9 /4:3 / Auto |
|
Contrast Ratio |
700:1 |
|
Brightness |
250cd/m2 |
|
Viewing Angle |
75°/75°(L/R) ,70°/75°(U/D) |
|

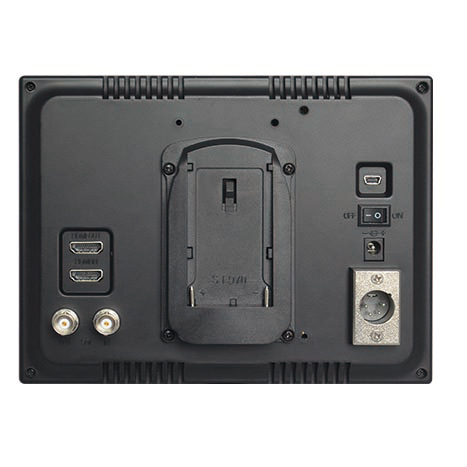

Input Signals |
HDMI X1，SDI X1 |
|
Output Signals |
HDMI X1，SDI X1 |
|
Power Consumption |
≦8W |
|
Input Voltage |
DC 7V-24V |
|
Working Temperature |
-20℃～60℃ |
|
Storage Temperature |
-30℃～70℃ |
|
Unit Size |
194L× 148W ×31.2H(mm) |
|
Unit Weight |
540g |
|
Accessories |

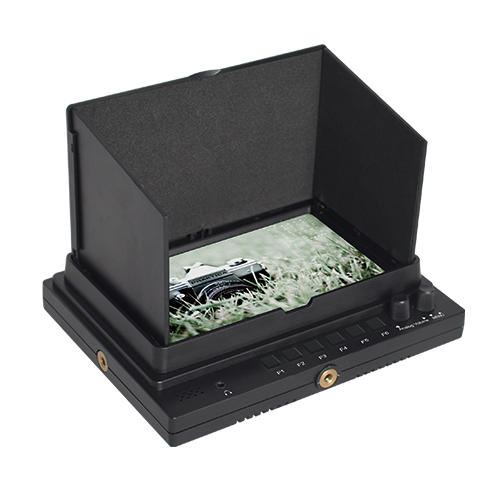

Sun Shade x1, Mini HDMI cable x1, Hot Shoe x1, SONY F970 Battery Plate |
|
Packing Details |
5PCS /CTN |
|
|
Carton Size: 58x32x26.8cm |
|
|
N.W./G.W.:12/13KGS |
SDI Support Mode:
|
NO. |
Resolution |
Catalogue |
|
1. |
1080P@60HZ/59.94HZ |
3G-SDI |
|
2. |
1080P@50HZ |
3G-SDI |
|
3. |
1080I@60HZ/59.94HZ |
HD-SDI |
|
4. |
1080I@50HZ |
HD-SDI |
|
5. |
1080P@30HZ/29.97HZ |
HD-SDI |
|
6. |
1080P@25HZ |
HD-SDI |
|
7. |
1080P@24HZ |
HD-SDI |
|
8. |
720P@60HZ/59.94HZ |
HD-SDI |
|
9. |
720P@50HZ |
HD-SDI |
|
10. |
720P@30HZ/29.97HZ |
HD-SDI |
|
11. |
720P@25HZ |
HD-SDI |
|
12. |
720I@24HZ/23.97HZ |
HD-SDI |
|
13. |
480I@60HZ/59.94HZ |
SD-SDI |
|
14. |
576I@50HZ |
SD-SDI |
