3G-SDI Professional 21.5 Inch Broadcasting HD Monitor
Classification: 21.5 Inch Published: 2013-08-30 23:01:05
  • Price : Negotiable
  • Order

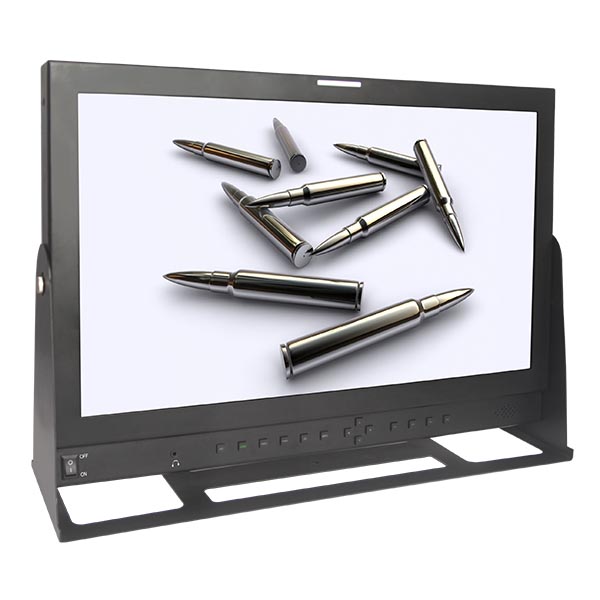

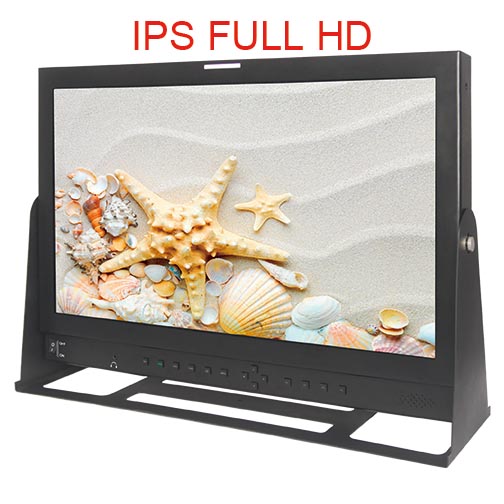

3G-SDI Professional 21.5 Inch  Broadcasting HD Monitor




Advanced Features :

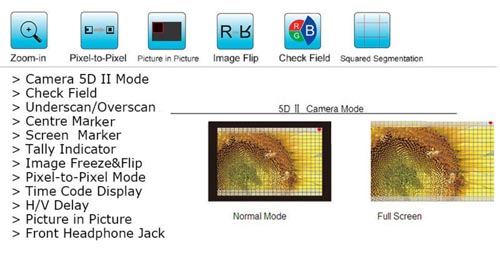

  • 5D Camera Mode(DSLR Ratio Adjustment)
  • H/V Delay

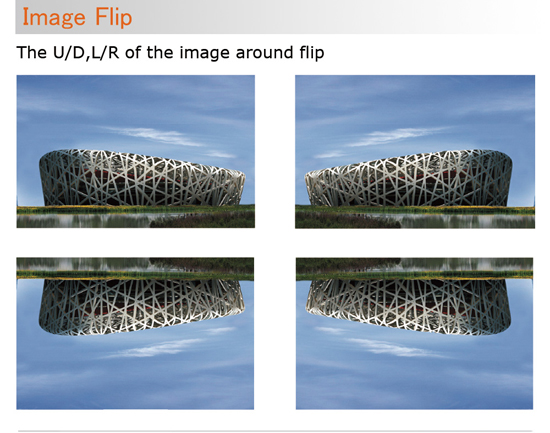

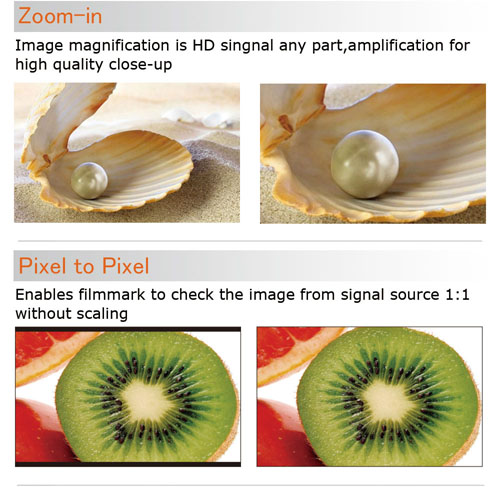

  • Image Freeze/ Multiplication(Zoom),Image Flip

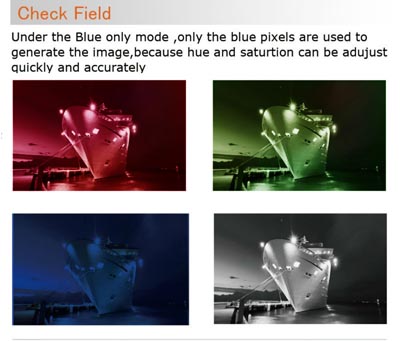

  • Check Field (Red,Green,Blue,Mono,)
  • Underscan/Overscan
  • Pixel-to-Pixel Mode
  • Tally Indicator(Red/ Green)
  • Front Headphone Jack
  • Center Marker/Screen Marker80%, 85%, 90%, 93%, 96%
  • Variety of Optional User-ReplaceableBatteryAdapters available:  V-Mount battery plate,Panasonic Anton Bauer battery plate




Specifications :


Model Number

P215-9HSD

Screen Size

21.5 Inch

Resolution

1920x1080

Backlight

LED

Aspect Ratio

16:9

Contrast Ratio

1000:1

Brightness

250cd/m2

Viewing Angle

89°/89°(L/R) , 89°/89°(U/D)

Input Signals

3G/HD/SD-SDI,HDMI,Component,Composite

Output Signals

3G/HD/SD-SDI,HDMI,Component,Composite

Power Consumption

10W

Input Voltage

DC 7-18V (4-Pin XLR)

Working Temperature

 050

Storage Temperature

-2060

Unit Size

525.6Lx355.5Wx40H(mm)

Unit Weight

7.5KGS

Accessories


Packing Details





Carton Size:



N.W./G.W.:
