4.3 Handheld Digital LCD Satellite Finder with DC 12V Output for Camera
Classification: 4.3 inch Published: 2016-02-12 21:19:25

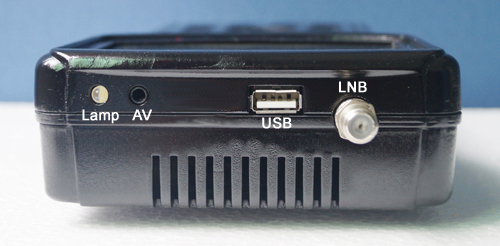

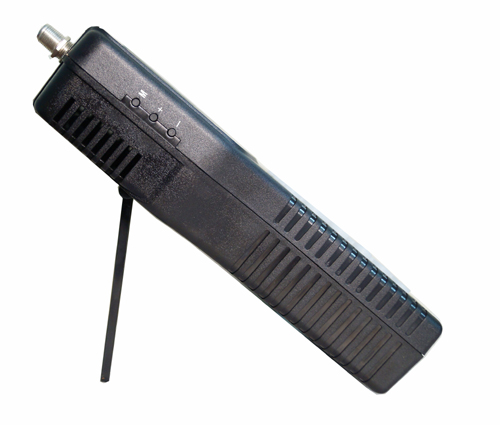

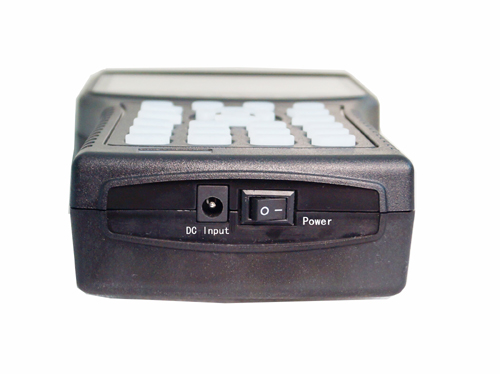

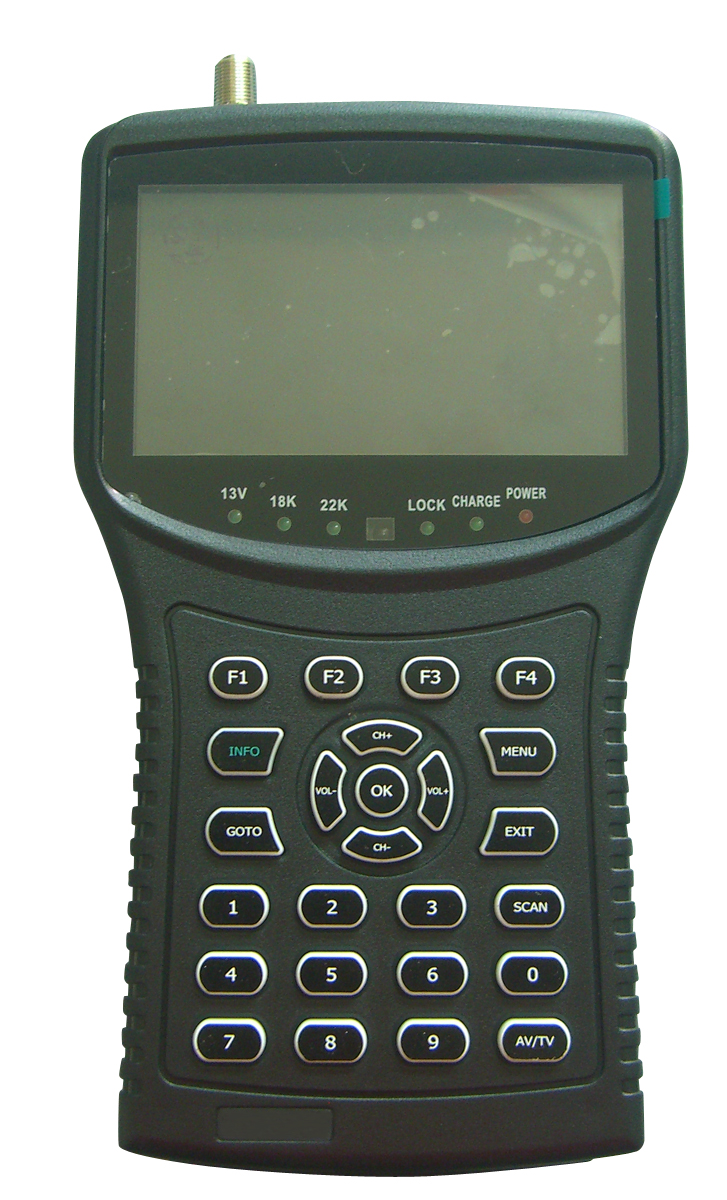

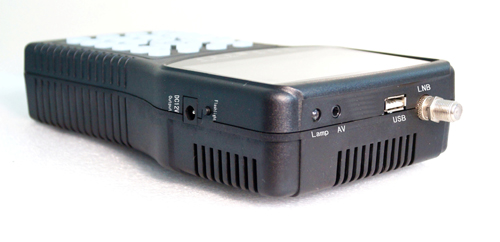

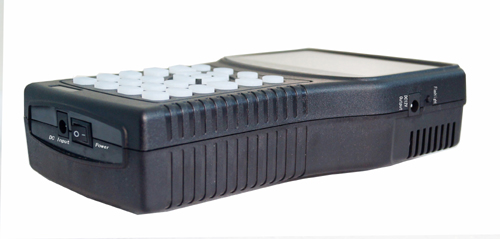

4.3" Handheld Digital LCD Satellite Finder  with DC 12V Output for Camera

Product Description:



Model Number


Screen Size

4.3 inch

Menu Language

Chinese/English /French / Arabic/Turkey/Russia

Display Size

97x55mm(16:9 display)

Dot Pixels

480x272(391680 pixels)

LNB Input

F type

Satellite signal video decoding

DVB-S/2 CBS-2,MPEG-4 signal alarm and signal display

Frequency Range

950MHz to 2150MHz

Signal Level

  from -65dBm to -25dBm

 LNB Power Supply


 LNB Switch Control



  1.0, 1.2

 Demodulation chip

  QPSK(SCPC and MCPC compatible)

  Symbol Rate


 System Processor

  32bit processor(200MHz)

 Sampling Rate

   32,44.1 and 48KHz

 Lithium Battery

  DC 11.1V 2200mAh(built-in)

 Minimum Electric Level

  About 35dBuV (noise)

 Maximum Electric Level

 About 90dBuV

 Input Voltage

 DC 13.5V,1.5A

 Output Voltage

 DC 12V




  540g (including battery pack)









Standard Accessories:


 DC13.5V 1.5A adapter x 1

Bag x 1 ,

F Fast Line x 1

Manual x1

AV Line x1

 DC Line x 1

Car Power x 1

Remote controller x 1 (optional)



 Packaging & Shipping:


Per carton :10pcs/ctn


Carton Size :68x35x27cm


N.W.:11.5 KG/CTN





Shipping :DHL ,FEDEX,UPS,TNT, EMS,ect.
